826947-4

Active

TE Connectivity AMP Connectors

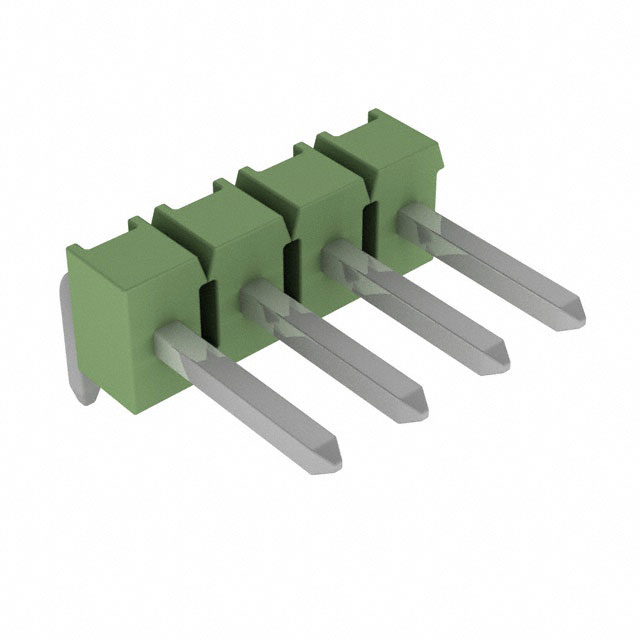

CONN HEADER R/A 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

826947-4

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 4POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.26
		10	$ 0.23
		100	$ 0.20
		700	$ 0.17

Description

General part information

826947 Series

Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826947-4	826947 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	-	78.7 µin
Contact Finish Thickness - Mating	-	2 µm
Contact Finish Thickness - Post	2 Ąm	2 çm
Contact Finish Thickness - Post	78.7 Ąin	78.7 çin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Height	3.05 mm	3.05 mm
Insulation Height	0.12 in	0.12 in
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	4	4 - 50
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826947 Series

CONN HEADER R/A 6POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Fastening Type	Style	Insulation Height	Insulation Height	Connector Type	Mounting Type	Contact Shape	Contact Finish - Post	Contact Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Color	Material Flammability Rating	Number of Positions Loaded	Shrouding	Contact Material	Insulation Material	Number of Positions	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors 826947-6	2 çm	78.7 çin	3.2 mm	0.126 in	6.7 mm	0.264 in	Push-Pull	Board to Board, Cable	3.05 mm	0.12 in	Breakaway, Header	Through Hole, Right Angle	Square	Tin	Male Pin	1	-65 ░C	105 ░C	Solder	Green	UL94 V-0	All	Unshrouded	Copper Alloy	Polybutylene Terephthalate (PBT)	6	0.1 in	2.54 mm	5 A	78.7 µin	2 µm
TE Connectivity AMP Connectors 826947-4	2 Ąm	78.7 Ąin	3.2 mm	0.126 in	6.7 mm	0.264 in	Push-Pull	Board to Board, Cable	3.05 mm	0.12 in	Breakaway, Header	Through Hole, Right Angle	Square	Tin	Male Pin	1	-65 ░C	105 ░C	Solder	Green	UL94 V-0	All	Unshrouded	Copper Alloy	Polybutylene Terephthalate (PBT)	4	0.1 in	2.54 mm	5 A
TE Connectivity AMP Connectors 826947-8	2 çm	78.7 çin	3.2 mm	0.126 in	6.7 mm	0.264 in	Push-Pull	Board to Board, Cable	3.05 mm	0.12 in	Breakaway, Header	Through Hole, Right Angle	Square	Tin	Male Pin	1	-65 ░C	105 ░C	Solder	Green	UL94 V-0	All	Unshrouded	Copper Alloy	Polybutylene Terephthalate (PBT)	8	0.1 in	2.54 mm	5 A	78.7 µin	2 µm
TE Connectivity AMP Connectors 826947-5	2 çm	78.7 çin	3.2 mm	0.126 in	6.7 mm	0.264 in	Push-Pull	Board to Board, Cable	3.05 mm	0.12 in	Breakaway, Header	Through Hole, Right Angle	Square	Tin	Male Pin	1	-65 ░C	105 ░C	Solder	Green	UL94 V-0	All	Unshrouded	Copper Alloy	Polybutylene Terephthalate (PBT)		0.1 in	2.54 mm	5 A	78.7 µin	2 µm
TE Connectivity AMP Connectors 826947-3	2 çm	78.7 çin	3.2 mm	0.126 in	6.7 mm	0.264 in	Push-Pull	Board to Board, Cable	3.05 mm	0.12 in	Breakaway, Header	Through Hole, Right Angle	Square	Tin	Male Pin	1	-65 ░C	105 ░C	Solder	Green	UL94 V-0	All	Unshrouded	Copper Alloy	Polybutylene Terephthalate (PBT)		0.1 in	2.54 mm	5 A	78.7 µin	2 µm
TE Connectivity AMP Connectors 5-826947-0	2 çm	78.7 çin	3.2 mm	0.126 in	6.7 mm	0.264 in	Push-Pull	Board to Board, Cable	3.05 mm	0.12 in	Breakaway, Header	Through Hole, Right Angle	Square	Tin	Male Pin	1	-65 ░C	105 ░C	Solder	Green	UL94 V-0	All	Unshrouded	Copper Alloy	Polybutylene Terephthalate (PBT)	50	0.1 in	2.54 mm	5 A	78.7 µin	2 µm
