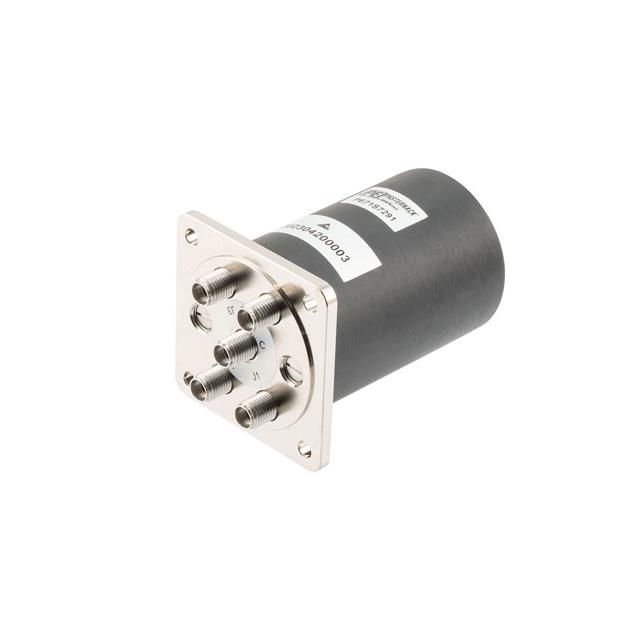

PE71S7291
ActivePasternack
SP4T, ELECTROMECHANICAL RELAY NO
PE71S7291
ActivePasternack
SP4T, ELECTROMECHANICAL RELAY NO
Description
General part information
PE71S7291
RF Switch IC SATCOM SP4T 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | PE71S7291 |
|---|---|
| Circuit | SP4T |
| Frequency Range (Low) | DC |
| Frequency Range (Max) | 43 GHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.4 dB |
| Isolation | 85 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -25 °C |
| RF Type | SATCOM |
| Test Frequency | 43 GHz |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 26 V |
