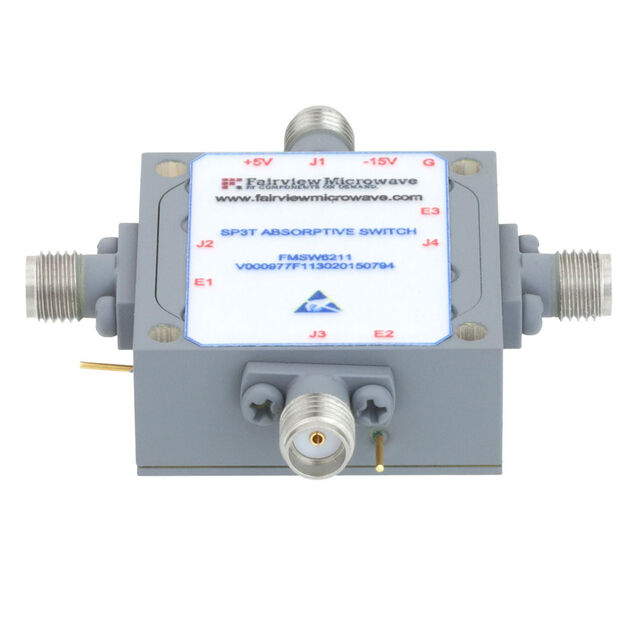

FMSW6211
ActiveFairview Microwave
PIN DIODE SWITCH SMA SP3T 18GHZ
FMSW6211
ActiveFairview Microwave
PIN DIODE SWITCH SMA SP3T 18GHZ
Description
General part information
FMSW6211
RF Switch IC General Purpose SP3T 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | FMSW6211 |
|---|---|
| Circuit | SP3T |
| Frequency Range (Max) | 18 GHz |
| Frequency Range (Min) | 500 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 3.8 dB |
| Isolation (Min) | 55 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RF Type | General Purpose |
| Test Frequency | 18 GHz |
| Topology | Absorptive |
| Voltage - Supply | 5 VDC, -15 V |
| Voltage - Supply | 5V, -15V |
