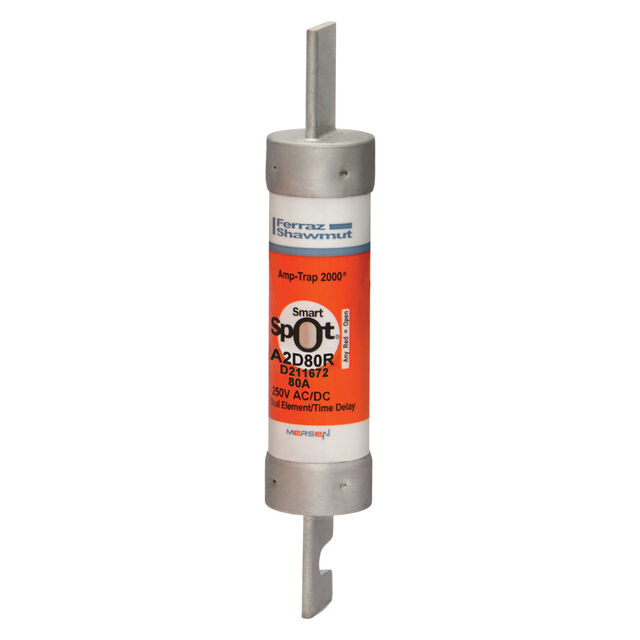

A2D80R
ActiveMersen USA Newburyport-MA L.L.C.
250V 80A RK1 TD FUSE
A2D80R
ActiveMersen USA Newburyport-MA L.L.C.
250V 80A RK1 TD FUSE
Description
General part information
A2D80R
80A 250 VAC 250 VDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | A2D80R |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UL, CSA |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 100 kA |
| Class | RK1 |
| Current Rating | 80 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | Cylindrical, Blade Terminals |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 1.063 in |
| Size / Dimension Length | 5.866 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
