ALD2321APCL

Active

Advanced Linear Devices Inc.

IC COMPARATOR 2 GEN PUR 16DIP

Search across all available documentation for this part.

Active

Advanced Linear Devices Inc.

IC COMPARATOR 2 GEN PUR 16DIP

Technical Specifications

Parameters and characteristics for this part

Specification	ALD2321APCL

CMRR, PSRR (Typ)	75 dB, 80 dB
Current - Input Bias (Max)	20 pA
Current - Quiescent (Max) [Max]	180 µA
Mounting Type	Through Hole
Number of Elements	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output Type	TTL, NMOS, Open-Drain, Complementary, CMOS, Push-Pull
Package / Case	0.3 in

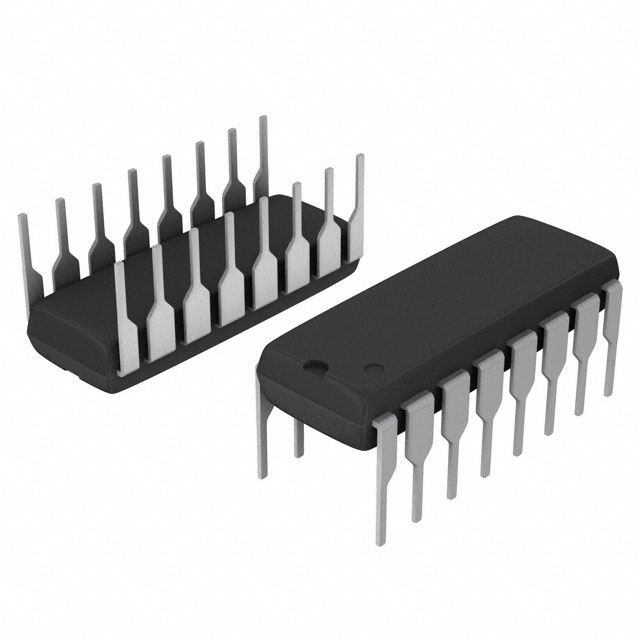

Package / Case	16-DIP
Package / Case	7.62 mm
Supplier Device Package	16-PDIP
Type	General Purpose
Voltage - Input Offset (Max)	0.2 mV
Voltage - Supply, Single/Dual (±) [Max]	5 V, 10 V
Voltage - Supply, Single/Dual (±) [Min]	4 V, -2 V

IC COMPARATOR 2 GEN PUR 16DIP

Part	Current - Input Bias (Max)	Current - Quiescent (Max) [Max]	Supplier Device Package	Voltage - Input Offset (Max)	Output Type	Package / Case	Package / Case	Package / Case	Number of Elements	CMRR, PSRR (Typ)	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Advanced Linear Devices Inc. ALD2321APCL	20 pA	180 µA	16-PDIP	0.2 mV	CMOS, Complementary, NMOS, Open-Drain, Push-Pull, TTL	0.3 in	16-DIP	7.62 mm	2	75 dB, 80 dB	-2 V, 4 V	5 V, 10 V	General Purpose	Through Hole	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	50	$ 13.49

General part information

Comparator General Purpose CMOS, Complementary, NMOS, Open-Drain, Push-Pull, TTL 16-PDIP
