VLS201610CX-R47M
ObsoleteTDK Corporation
FIXED IND 470NH 2.69A 50MOHM SMD
VLS201610CX-R47M
ObsoleteTDK Corporation
FIXED IND 470NH 2.69A 50MOHM SMD
Description
General part information
VLS201610CX-R47M

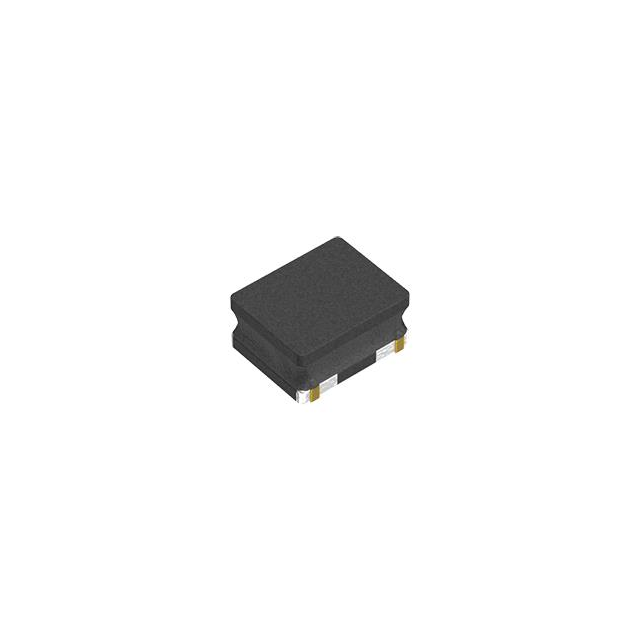

470 nH Shielded Drum Core, Wirewound Inductor 2.69 A 50mOhm Max 2-SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | VLS201610CX-R47M |
|---|---|
| Current - Saturation (Isat) | 3.15 A |
| Current Rating | 2.69 A |
| DC Resistance (DCR) (Max) | 50 mOhm |
| Height - Seated (Max) | 0.039 in |
| Inductance | 470 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2-SMD |
| Shielding | Shielded |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.063 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
