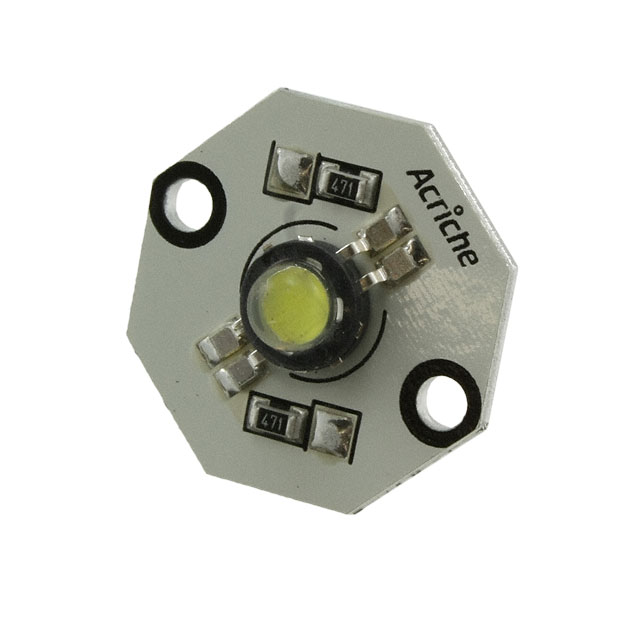

AW2214

Obsolete

Seoul Semiconductor

LED ENG ACRICHE A2 STARBRD

Search across all available documentation for this part.

Obsolete

Seoul Semiconductor

LED ENG ACRICHE A2 STARBRD

Technical Specifications

Parameters and characteristics for this part

Specification	AW2214

CCT (K)	6300 K
Color	Cool, White
Configuration	Starboard
CRI (Color Rendering Index)	70
Current - Max [Max]	20 mA
Current - Test	20 mA
Lens Type	Domed
Luminous Flux @ Current/Temperature	80 lm
Size / Dimension [x]	25 mm
Size / Dimension [y]	25 mm
Type	LED Engine
Viewing Angle	110 °

LED ENG ACRICHE A2 STARBRD

Part	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	CCT (K)	Current - Test	Color	Current - Max [Max]	Lens Type	Configuration	Type	Viewing Angle
Seoul Semiconductor AW2214	25 mm	25 mm	70	80 lm	6300 K	20 mA	Cool, White	20 mA	Domed	Starboard	LED Engine	110 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Engine Acriche A2 White, Cool Starboard
