Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STEVAL-FSM01M1 | CLT03 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Current - Output | - | 4 mA |
| Function | Digital I/O | Current Limiting, Digital I/O |
| Interconnect System | ST Morpho, Arduino R3 Shield | ST Morpho, Arduino R3 Shield |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -30 °C |
| Operating Temperature | - | 125 °C |
| Package / Case | - | 16-VFDFN Exposed Pad |
| Platform | Nucleo | Nucleo |
| Sensing Method | - | High/Low-Side |
| Suggested Programming Environment | STM32Cube | STM32Cube |
| Supplier Device Package | - | 16-QFN (2x4) |
| Type | Interface | Interface |
| Utilized IC / Part | IPS161HF, CLT03-2Q3, IPS160HF | IPS161HF, CLT03-2Q3, IPS160HF |
| Voltage - Input | - | -60 V |
| Voltage - Input | - | 60 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
CLT03 Series
Advanced dual channel digital I/O module for safe automation
| Part | Sensing Method | Function | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Current - Output | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type | Contents | Interconnect System | Type | Utilized IC / Part | Platform | Suggested Programming Environment |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STEVAL-FSM01M1 | ||||||||||||||||
STMicroelectronics STEVAL-FSM01M1 | ||||||||||||||||
STMicroelectronics CLT03-2Q3 | High/Low-Side | Current Limiting | 16-VFDFN Exposed Pad | -30 °C | 125 °C | 16-QFN (2x4) | 4 mA | -60 V | 60 V | Surface Mount | ||||||
STMicroelectronics STEVAL-FSM01M1 | Digital I/O | Board(s) | Arduino R3 Shield, ST Morpho | Interface | CLT03-2Q3, IPS160HF, IPS161HF | Nucleo | STM32Cube | |||||||||
STMicroelectronics CLT03-2Q3 | ||||||||||||||||
STMicroelectronics CLT03-2Q3 |
Description
General part information
CLT03 Series

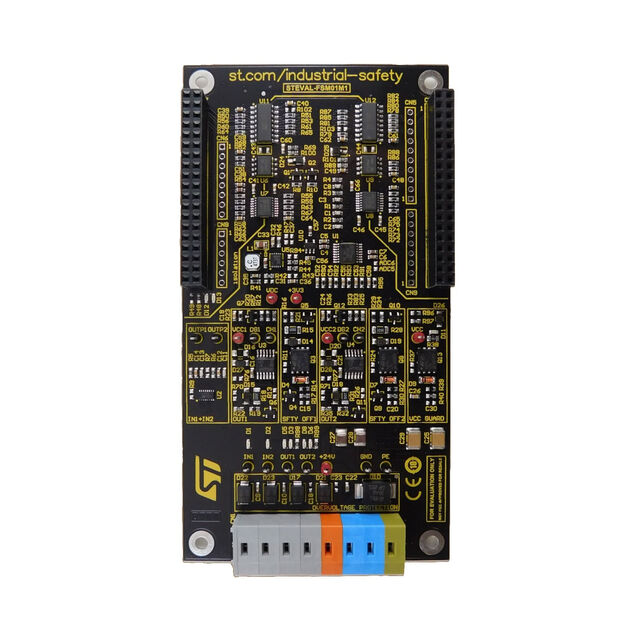

STEVAL-FSM01M1 is a safe dual channel digital I/O expansion board compatible with the STM32 Nucleo. Its system architecture reflects our long-term experience with designing digital I/O applications to reach the highest-grade robustness and to meet the requirements on reliability of operation in the most challenging industrial environments such as factory automation and functional safety.
While the majority of standard Nucleo expansion shields are usually plugged-in on top of an STM32 Nucleo board using the ARDUINO® Uno V3 connectors, the STEVAL-FSM01M1, in contrary, provides the base for the Nucleo that is connected on top of it by means of its onboard ST morpho extension headers.
The microcontroller pins and peripherals handling the operation of the STEVAL-FSM01M1 are physically separated from those used by other X-NUCLEO boards eventually connected to the system.
