ECC.1B.308.CLL
ActiveLEMO

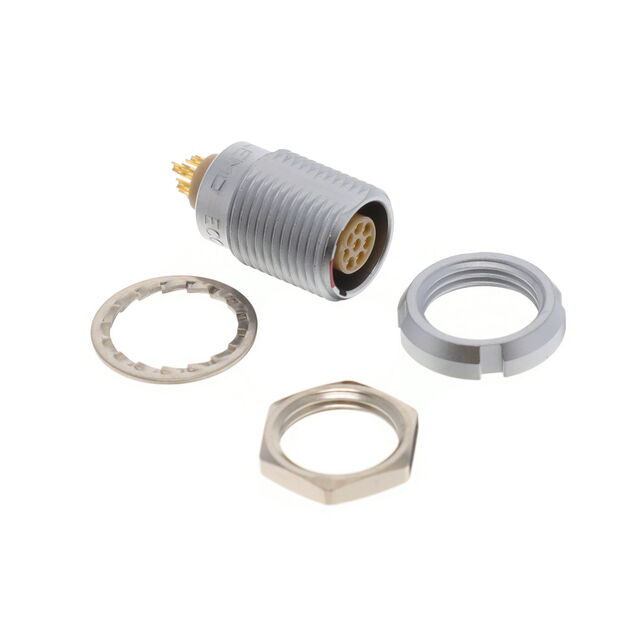

CONN RCPT FMALE 8P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ECC.1B.308.CLL
ActiveLEMO
CONN RCPT FMALE 8P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ECC.1B.308.CLL | ECC.1B Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Front and Rear Side Nut | Front and Rear Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Number of Positions | 8 | 8 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | C | C |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 308 | 308 |
| Shielding | Shielded | Shielded |
| Termination | - | Solder, Crimp |
ECC.1B Series
CONN RCPT FMALE 8POS GOLD SOLDER
| Part | Ingress Protection | Mounting Type | Termination | Fastening Type | Shell Material | Current Rating (Amps) | Shell Finish | Shielding | Mounting Feature | Color | Material Flammability Rating | Number of Positions | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Primary Material | Shell Size - Insert | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ECC.1B.308.CLN | IP50 | Panel Mount, Through Hole | Solder | Push-Pull | Brass | 5 A | Chrome | Shielded | Front and Rear Side Nut | Silver | UL94 V-0 | 8 | Bronze | 59 Áin | 1.5 Ám | Gold | Receptacle, Female Sockets | -55 °C | 250 °C | Polyetheretherketone (PEEK) | Metal | 308 | C |
LEMO ECC.1B.308.CYM | IP50 | Crimp | Push-Pull | Brass | 5 A | Chrome | Shielded | Front and Rear Side Nut | Silver | UL94 V-0 | 8 | Bronze | 59 Áin | 1.5 Ám | Gold | Receptacle, Female Sockets | -55 °C | 250 °C | Polyetheretherketone (PEEK) | Metal | 308 | C | |
LEMO ECC.1B.308.CLL | IP50 | Push-Pull | Brass | 5 A | Chrome | Shielded | Front and Rear Side Nut | Silver | UL94 V-0 | 8 | Bronze | 59 Áin | 1.5 Ám | Gold | Receptacle, Female Sockets | -55 °C | 250 °C | Polyetheretherketone (PEEK) | Metal | 308 | C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.50 | |
Description
General part information
ECC.1B Series
8 Position Circular Connector Receptacle, Female Sockets Solder Cup
