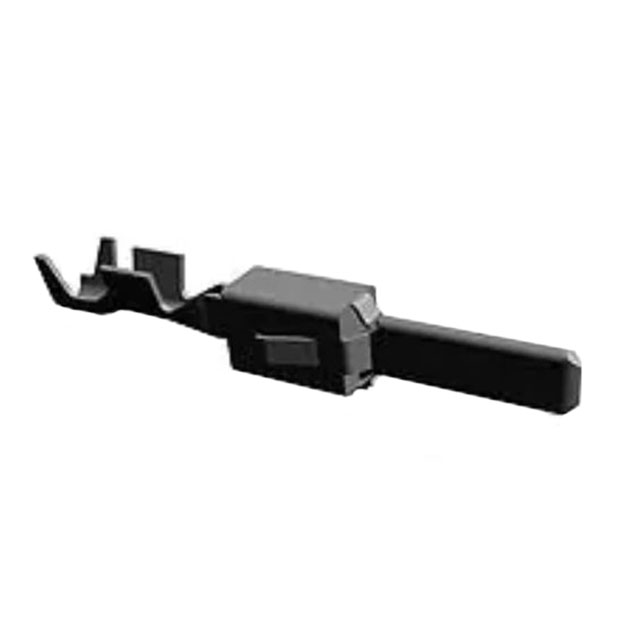

2-962842-1
ActiveTE Connectivity AMP Connectors
FLACHSTECKER2,8X0,8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-962842-1
ActiveTE Connectivity AMP Connectors
FLACHSTECKER2,8X0,8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-962842-1 | 962842 Series |
|---|---|---|
| Contact Finish | Silver | Silver |
| Contact Finish Thickness | 3 µm | 3 µm |
| Contact Finish Thickness | 118.1 µin | 118.1 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Tab | Tab |
| Type | Stamped | Stamped, Power |
| Wire Gauge [Max] | 17 AWG | 17 AWG |
| Wire Gauge [Min] | 13 AWG | 13 AWG |
962842 Series
FLACHSTECKER2,8X0,8
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Termination | Contact Finish | Pin or Socket | Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-962842-1 | 13 AWG | 17 AWG | Crimp | Silver | Tab | Stamped | 3 µm | 118.1 µin |
TE Connectivity AMP Connectors 1-962842-3 | Crimp | Silver | Tab | Power | 3 µm | 118.1 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3500 | $ 0.20 | |
| 7000 | $ 0.19 | |||
| 10500 | $ 0.18 | |||
| 17500 | $ 0.17 | |||
| 24500 | $ 0.17 | |||
| Cut Tape (CT) | 1 | $ 0.21 | ||
| 10 | $ 0.19 | |||
Description
General part information
962842 Series
Tab Contact Silver 13-17 AWG Crimp Stamped
