CG2163X3-EVAL

Active

CEL

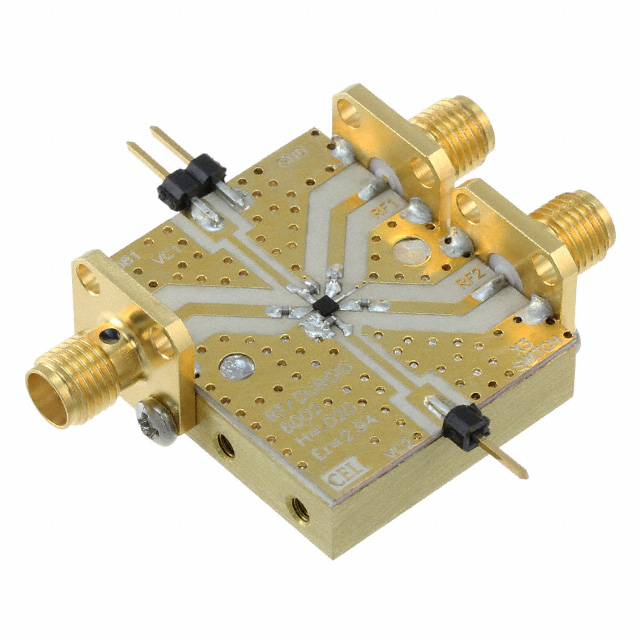

EVAL BOARD FOR CG2163X3

Search across all available documentation for this part.

Active

CEL

EVAL BOARD FOR CG2163X3

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CG2163X3-EVAL	CG2163 Series

Circuit	-	SPDT
For Use With/Related Products	CG2163X3	CG2163X3
Frequency [Max]	6 GHz	6 GHz
Frequency [Min]	2.4 GHz	2.4 GHz
Frequency Range	-	6 GHz
Frequency Range	-	2.4 GHz
IIP3	-	55 dBm
Impedance	-	50 Ohms
Insertion Loss	-	0.5 dB
Isolation	-	31 dB
P1dB	-	32 dBm
Package / Case	-	6-XFDFN Exposed Pad
RF Type	-	802.11a/b/g/n/ac
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	6-TSON (1.5x1.5)
Test Frequency	-	6 GHz
Type	Switch, SPDT	Switch, SPDT
Voltage - Supply	-	1.8 V
Voltage - Supply	-	5 V

IC RF SWITCH SPDT 6GHZ 6TSON

Part	P1dB	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Insertion Loss	Impedance	Circuit	IIP3	RF Type	Test Frequency	Frequency Range [Max]	Frequency Range [Min]	Isolation	Package / Case	Supplied Contents	Type	For Use With/Related Products	Frequency [Max]	Frequency [Min]
CEL CG2163X3-C2	32 dBm	1.8 V	5 V	6-TSON (1.5x1.5)	0.5 dB	50 Ohms	SPDT	55 dBm	802.11a/b/g/n/ac	6 GHz	6 GHz	2.4 GHz	31 dB	6-XFDFN Exposed Pad
CEL CG2163X3	32 dBm	1.8 V	5 V	6-TSON (1.5x1.5)	0.5 dB	50 Ohms	SPDT		802.11a/b/g/n/ac	6 GHz	6 GHz	2.4 GHz		6-XFDFN Exposed Pad
CEL CG2163X3-EVAL															Board(s)	Switch, SPDT	CG2163X3	6 GHz	2.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 100.00

General part information

CG2163X3 - Switch, SPDT 2.4GHz ~ 6GHz Evaluation Board
