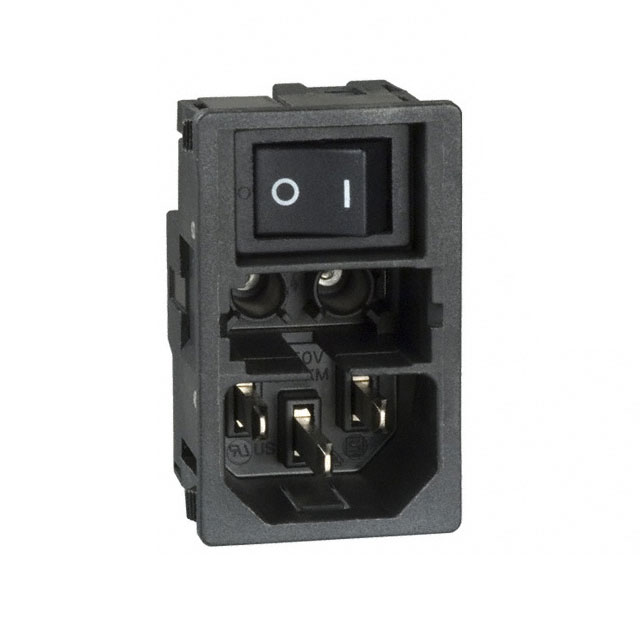

KM00.1105.11
ActiveKM, MOUNTING:QUICK CONNECT TERMINALS 4.8 X 0.8 MM, FUSE HOLDER: 2-POLE, ROCKER SWITCH, NON-ILLUMINATED, 2-POLE, APPLIANCE INLET:
Deep-Dive with AI
Search across all available documentation for this part.
KM00.1105.11
ActiveKM, MOUNTING:QUICK CONNECT TERMINALS 4.8 X 0.8 MM, FUSE HOLDER: 2-POLE, ROCKER SWITCH, NON-ILLUMINATED, 2-POLE, APPLIANCE INLET:
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | KM00.1105.11 | KM00.1105 Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | CCC, ENEC, cULus | CCC, ENEC, cULus |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Features | Terminating Cover | Terminating Cover |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Fuse Holder, Drawer | Drawer Sold Separate | Drawer Sold Separate |
| Ingress Protection | IP40 | IP40 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28 mm | 28 mm |
| Panel Cutout Dimensions [y] | 47 mm | 47 mm |
| Panel Thickness [Max] | 2.5 mm | 2.5 mm |
| Panel Thickness [Max] | 0.098 in | 0.098 in |
| Panel Thickness [Min] | 1 mm | 1 mm |
| Panel Thickness [Min] | 0.039 in | 0.039 in |
| Switch Features | Switch On-Off | Switch On-Off |
| Termination | 0.189 ", 4.8 mm | 0.189 - 4.8 " |
| Termination | Quick Connect | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
KM00.1105 Series
KM, MOUNTING:QUICK CONNECT TERMINALS 4.8 X 0.8 MM, FUSE HOLDER: 2-POLE, ROCKER SWITCH, NON-ILLUMINATED, 2-POLE, APPLIANCE INLET:
| Part | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Connector Type | Switch Features | Filter Type | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Mounting Type | Ingress Protection | Fuse Holder, Drawer | Current Rating - Appliance Inlet | Connector Style | Material Flammability Rating | Termination | Termination | Voltage Rating - Appliance Inlet | Features | Approval Agency | Accomodates a Fuse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. KM00.1105.11 | 47 mm | 28 mm | Receptacle, Male Blades - Module | Switch On-Off | Unfiltered - Commercial | 2.5 mm | 1 mm | 0.098 in | 0.039 in | Panel Mount, Snap-In | IP40 | Drawer Sold Separate | 10 A | IEC 320-C14 | UL94 V-0 | 0.189 ", 4.8 mm | Quick Connect | 250 VAC | Terminating Cover | CCC, cULus, ENEC | |
SCHURTER Inc. KM00.1105.1101 | 47 mm | 28 mm | Receptacle, Male Blades - Module | Switch On-Off | Unfiltered - Commercial | 2.5 mm | 1 mm | 0.098 in | 0.039 in | Panel Mount, Snap-In | IP40 | Drawer Sold Separate | 10 A | IEC 320-C14 | UL94 V-0 | 0.189 ", 4.8 mm | Quick Connect | 250 VAC | Terminating Cover | CCC, cULus, ENEC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
KM00.1105 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
