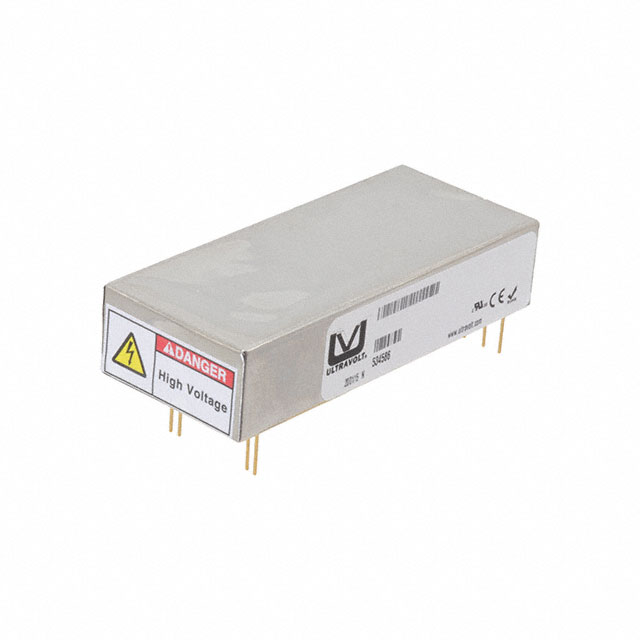

Specification	1/4A12-N4-M

Applications	ITE (Commercial)
Approval Agency	cURus, CE
Current - Output (Max)	16 mA
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-40 °C
Package / Case	11-DIP Module
Power (Watts)	4 W
Size / Dimension Height	0.8 in
Size / Dimension Length	3.73 in
Size / Dimension Width	1.53 in
Standard Number	62368-1, 60950-1
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max)	16 V
Voltage - Input (Min)	11 V
Voltage - Output 1	250 V

1/4A12 Series

Part	Type	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Power (Watts)	Current - Output (Max)	Package / Case	Mounting Type	Voltage - Input (Max)	Voltage - Input (Min)	Voltage - Output 1 (Min)	Voltage - Output 1 (Max)	Applications	Approval Agency	Control Features	Number of Outputs	Features	Operating Temperature (Min)	Operating Temperature (Max)
ULTRAVOLT / Advanced Energy 2A12-N4-F-C	High Voltage - Non-Isolated Module	4.75 in	2 in	1 in	4 W	2 mA	Module	Through Hole	30 V p-p	23 V	0 V	2000 V	ITE (Commercial)	CE cURus	Active Low Enable	1	Adjustable Output Remote On/Off	-40 °C	65 °C
ULTRAVOLT / Advanced Energy 2A12-N4-I5-M
ULTRAVOLT / Advanced Energy 2A12-N4-F-E	High Voltage - Non-Isolated Module	4.75 in	2 in	1 in	4 W	2 mA	Module	Through Hole	30 V p-p	23 V	0 V	2000 V	ITE (Commercial)	CE cURus	Active Low Enable	1	Adjustable Output Remote On/Off	-40 °C	65 °C
ULTRAVOLT / Advanced Energy 2A12-N4-I5
ULTRAVOLT / Advanced Energy 2A12-N4-F-M
