Description
General part information

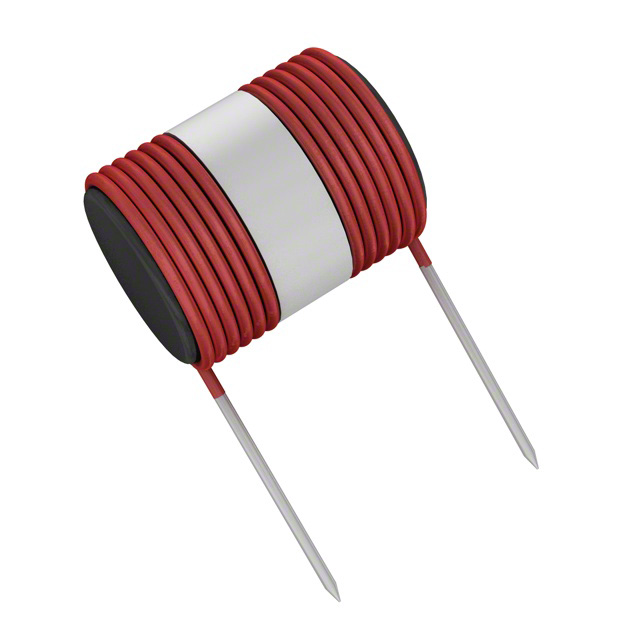

3HC-100
100 µH Unshielded Drum Core, Wirewound Inductor 3 A 65mOhm Max Radial, Horizontal Cylinder (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | 3HC-100 |
|---|---|
| Current - Saturation (Isat) | 8 A |
| Current Rating | 3 A |
| DC Resistance (DCR) (Max) | 65 mOhm |
| Inductance | 100 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.812 in |
| Size / Dimension Length | 1.125 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
