EMF212B7474MGHT

TAIYO YUDEN

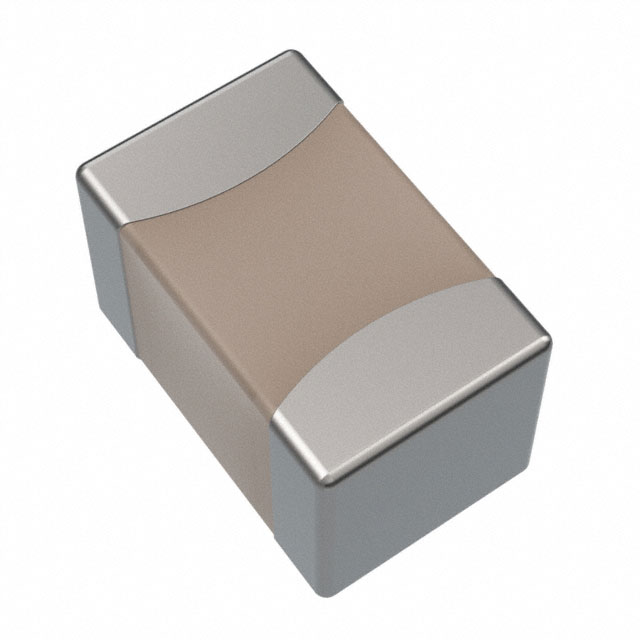

SMD MULTILAYER CERAMIC CAPACITOR, 0.47 ΜF, 16 V, 0805 [2012 METRIC], ± 20%, X7R, M SERIES

Search across all available documentation for this part.

TAIYO YUDEN

SMD MULTILAYER CERAMIC CAPACITOR, 0.47 ΜF, 16 V, 0805 [2012 METRIC], ± 20%, X7R, M SERIES

Technical Specifications

Parameters and characteristics commom to parts in this series

SMD MULTILAYER CERAMIC CAPACITOR, 0.22 ΜF, 16 V, 0805 [2012 METRIC], ± 10%, X7R, M SERIES

Part	Temperature Coefficient	Applications	Tolerance	Thickness (Max) [Max]	Thickness (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Rated [custom]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Capacitance	Ratings
TAIYO YUDEN EMF212B7224KGHT	X7R	Automotive, SMPS Filtering	10 %	1.35 mm	0.053 in	-55 °C	125 °C	0805	16 V	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	0.22 µF	AEC-Q200
TAIYO YUDEN EMF212B7224MGHT	X7R	Automotive, SMPS Filtering	20 %	1.35 mm	0.053 in	-55 °C	125 °C	0805	16 V	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	0.22 µF	AEC-Q200
TAIYO YUDEN EMF212B7225MGHT	X7R	Automotive	20 %	1.35 mm	0.053 in	-55 °C	125 °C	0805	16 V	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	2.2 µF	AEC-Q200
TAIYO YUDEN EMF212B7105MGHT	X7R	Automotive, SMPS Filtering	20 %	1.35 mm	0.053 in	-55 °C	125 °C	0805	16 V	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	1 µF	AEC-Q200
TAIYO YUDEN EMF212B7474MGHT	X7R	Automotive, SMPS Filtering	20 %	1.35 mm	0.053 in	-55 °C	125 °C	0805	16 V	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	0.47 µF	AEC-Q200
TAIYO YUDEN EMF212B7105KGHT	X7R	Automotive, SMPS Filtering	10 %	1.35 mm	0.053 in	-55 °C	125 °C	0805	16 V	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	1 µF	AEC-Q200
TAIYO YUDEN EMF212B7225KGHT	X7R	Automotive	10 %	1.35 mm	0.053 in	-55 °C	125 °C	0805	16 V	MLCC, Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	2.2 µF	AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.47 µF ±20% 16V Ceramic Capacitor X7R 0805 (2012 Metric)
