77-1N-3126-09600

Active

Parker Chomerics

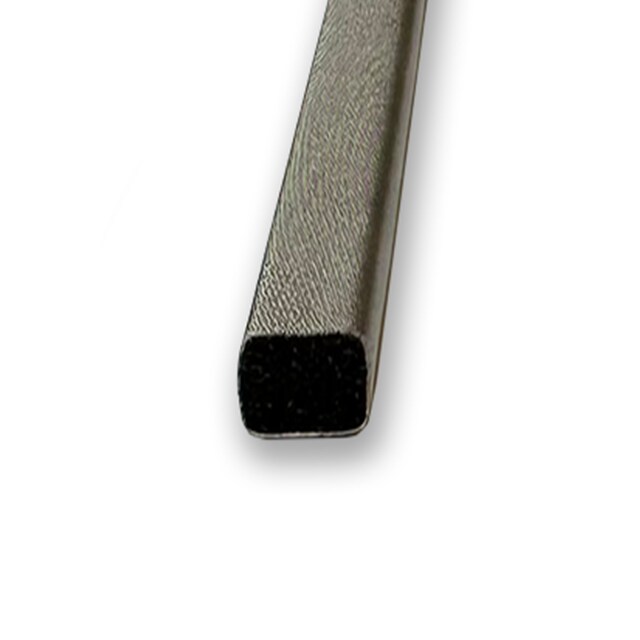

SOFT-SHIELD 3500, FOF, 6X6MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

77-1N-3126-09600

Active

Parker Chomerics

SOFT-SHIELD 3500, FOF, 6X6MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	440	$ 1.75

Description

General part information

77-1N Series

SOFT-SHIELD 3500, FOF, 6X6MM

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	77-1N-3126-09600	77-1N Series

Attachment Method	Adhesive	Adhesive
Height	-	12.7 - 13 mm
Height	-	9.53 - 15.9 mm
Height	-	3.81 - 24.99 mm
Height	-	0.15 - 0.984 in
Height	-	10,01
Height [z]	0.236 "	0.091 - 6.35 "
Height [z]	5.99 mm	0.5 - 50.8 in
Length [x]	2.44 m	2.44 m
Length [x]	96 in	96 in
Material	Nickel-Copper Taffeta over Urethane Foam - Halogen Free	Nickel-Copper Taffeta over Urethane Foam - Halogen Free
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Plating	Nickel	Nickel
Shape	Rectangle	Rectangle, Stealth, D-Shape, P-Shape, C-Fold
Shelf Life	24 Months	24 Months
Shelf Life Start	Date of Shipment	Date of Shipment
Storage/Refrigeration Temperature	70 °F	70 °F
Storage/Refrigeration Temperature	21 °C	21 °C
Type	Fabric Over Foam	Fabric Over Foam
Width	-	1.27 - 22.99 mm
Width	-	0.015 - 0.905 in
Width	-	0.38 - 34.93 mm
Width	-	0.047 - 1.375 in
Width	-	0.276 in
Width [x]	0.236 in	0.02 - 1.575 in
Width [x]	5.99 mm	0.51 - 40.01 mm

77-1N Series

SOFT-SHIELD 3500, FOF, 6.5X13MM

...

Part	Material	Length [x]	Length [x]	Plating	Height [z]	Height [z]	Shape	Width [y]	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life Start	Attachment Method	Type	Shelf Life	Height [z]	Width [x]	Width [x]	Width	Width
Parker Chomerics 77-1N-3338-09600	Nickel-Copper Taffeta over Urethane Foam - Halogen Free	2.44 m	96 in	Nickel	0.512 in	13 mm	Rectangle	6.48 mm	0.255 in	-40 °C	70 °C	70 °F	21 °C	Date of Shipment	Adhesive	Fabric Over Foam	24 Months
Parker Chomerics 77-1N-3335-09600	Nickel-Copper Taffeta over Urethane Foam - Halogen Free	2.44 m	96 in	Nickel	0.512 in	13 mm	Rectangle	2.49 mm	0.098 "	-40 °C	70 °C	70 °F	21 °C	Date of Shipment	Adhesive	Fabric Over Foam	24 Months
Parker Chomerics 77-1N-3107-09600	Nickel-Copper Taffeta over Urethane Foam - Halogen Free	2.44 m	96 in	Nickel	3.99 mm		Rectangle	3.99 mm	0.157 in	-40 °C	70 °C	70 °F	21 °C	Date of Shipment	Adhesive	Fabric Over Foam	24 Months	0.157 "
Parker Chomerics 77-1N-3421-09600	Nickel-Copper Taffeta over Urethane Foam - Halogen Free	2.44 m	96 in	Nickel	25.4 mm		Rectangle	3.18 mm	0.125 in	-40 °C	70 °C	70 °F	21 °C	Date of Shipment	Adhesive	Fabric Over Foam	24 Months	1 in
Parker Chomerics 77-1N-3101-09600	Nickel-Copper Taffeta over Urethane Foam - Halogen Free	2.44 m	96 in	Nickel	3 mm		Rectangle			-40 °C	70 °C	70 °F	21 °C	Date of Shipment	Adhesive	Fabric Over Foam	24 Months	0.118 in	0.078 in	1.98 mm
Parker Chomerics 77-1N-3299-09600	Nickel-Copper Taffeta over Urethane Foam - Halogen Free	2.44 m	96 in	Nickel	6.35 mm		Rectangle			-40 °C	70 °C	70 °F	21 °C	Date of Shipment	Adhesive	Fabric Over Foam	24 Months	6.35 mm	0.37 in		9.4 mm
Parker Chomerics 77-1N-3894-09600	Nickel-Copper Taffeta over Urethane Foam - Halogen Free	2.44 m	96 in	Nickel	0.5 in	12.7 mm	Stealth			-40 °C	70 °C	70 °F	21 °C	Date of Shipment	Adhesive	Fabric Over Foam	24 Months		0.215 in	5.46 mm
Parker Chomerics 77-1N-3138-09600	Nickel-Copper Taffeta over Urethane Foam - Halogen Free	2.44 m	96 in	Nickel	8 mm		Rectangle	3.99 mm	0.157 in	-40 °C	70 °C	70 °F	21 °C	Date of Shipment	Adhesive	Fabric Over Foam	24 Months	0.315 in
Parker Chomerics 77-1N-3313-09600	Nickel-Copper Taffeta over Urethane Foam - Halogen Free	2.44 m	96 in	Nickel	8 mm		Rectangle	10.01 mm	0.394 in	-40 °C	70 °C	70 °F	21 °C	Date of Shipment	Adhesive	Fabric Over Foam	24 Months	0.315 in
Parker Chomerics 77-1N-3662-09600	Nickel-Copper Taffeta over Urethane Foam - Halogen Free	2.44 m	96 in	Nickel	6.35 mm		D-Shape			-40 °C	70 °C	70 °F	21 °C	Date of Shipment	Adhesive	Fabric Over Foam	24 Months	6.35 mm			6.35 mm	0.25 in
