902-0003-001

Obsolete

ROBOTIS

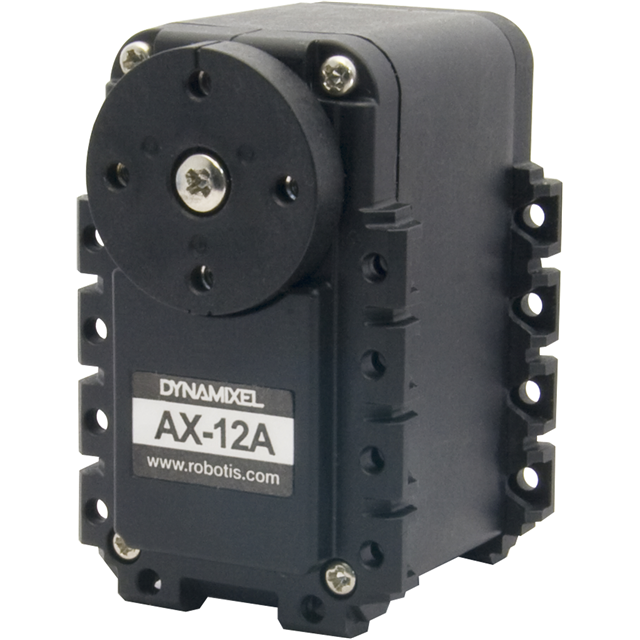

DYNAMIXEL AX-12A

Search across all available documentation for this part.

Obsolete

ROBOTIS

DYNAMIXEL AX-12A

Technical Specifications

Parameters and characteristics for this part

Specification	902-0003-001

Features	Integrated Controller
Function	Servomotor
Gear Reduction Ratio	254
Motor Type	Brushed
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-5 °C
RPM	59 RPM
Size / Dimension [x]	1.968 ", 50 mm
Size / Dimension [y]	1.259 in, 32 mm
Termination Style	Connector
Torque - Max Momentary (oz-in / mNm)	212.5 oz-in
Torque - Max Momentary (oz-in / mNm)	1500 mNm
Type	DC Motor
Voltage - Rated	11.1 V
Weight	0.12 lb
Weight	54.6 g

DYNAMIXEL AX-12A

Part	Size / Dimension [y]	Size / Dimension [x]	Function	Weight	Weight	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Voltage - Rated	Termination Style	Features	Motor Type	Type	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Gear Reduction Ratio
ROBOTIS 902-0003-001	1.259 in, 32 mm	1.968 ", 50 mm	Servomotor	0.12 lb	54.6 g	212.5 oz-in	1500 mNm	11.1 V	Connector	Integrated Controller	Brushed	DC Motor	59 RPM	-5 °C	70 °C	254

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Brushed DC Motor Servomotor 59 RPM 11.1VDC

Technical documentation and resources

No documents available
