Description
General part information

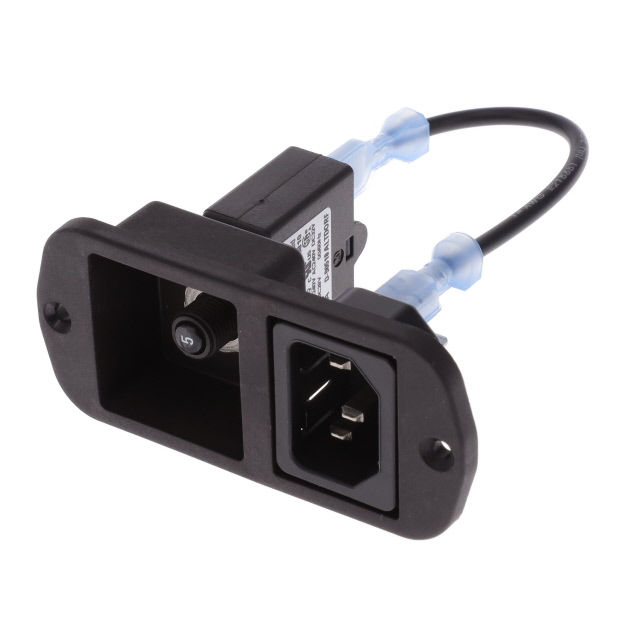

1658G2100P10D01055810XR38D040011M5A
Power Entry Connector Receptacle, Male Pins - Module IEC 320-C14 Panel Mount, Flange
Technical Specifications
Parameters and characteristics for this part
| Specification | 1658G2100P10D01055810XR38D040011M5A |
|---|---|
| Accomodates a Fuse | No |
| Approval Agency | CSA, ENEC, UL |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Pins - Module, Receptacle |
| Current Rating - Appliance Inlet | 10 A |
| Current Rating - Circuit Breaker | 5 A |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Panel Cutout Length | 36.58 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 65.02 mm |
| Switch Features | Circuit Breaker |
| Termination | Quick Connect |
| Termination Probe Tip OD | 0.25 in |
| Voltage Rating - Appliance Inlet | 250 VAC |
