Description
General part information

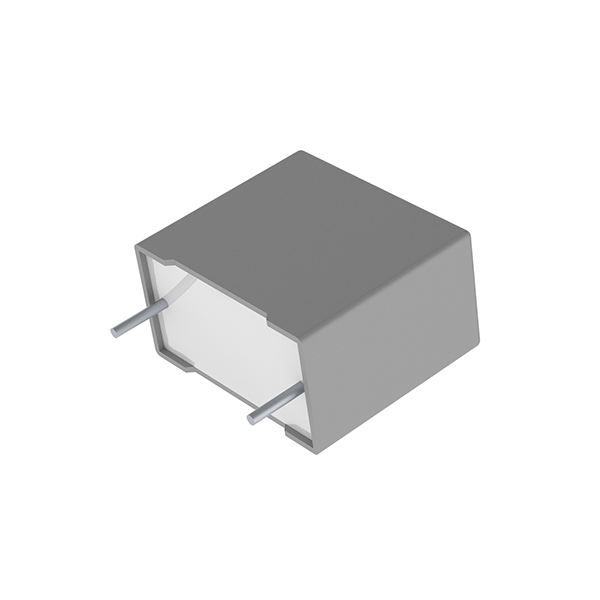

R75IW52205040K
22 µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | R75IW52205040K |
|---|---|
| Applications | High Frequency, Switching, High Pulse, DV/DT |
| Capacitance | 22 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 2.2 mOhm |
| Height - Seated (Max) | 1.736 in |
| Lead Spacing | 1.476 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.634 in |
| Size / Dimension Width | 0.945 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 160 V |
| Voltage Rating - DC | 250 VDC |
