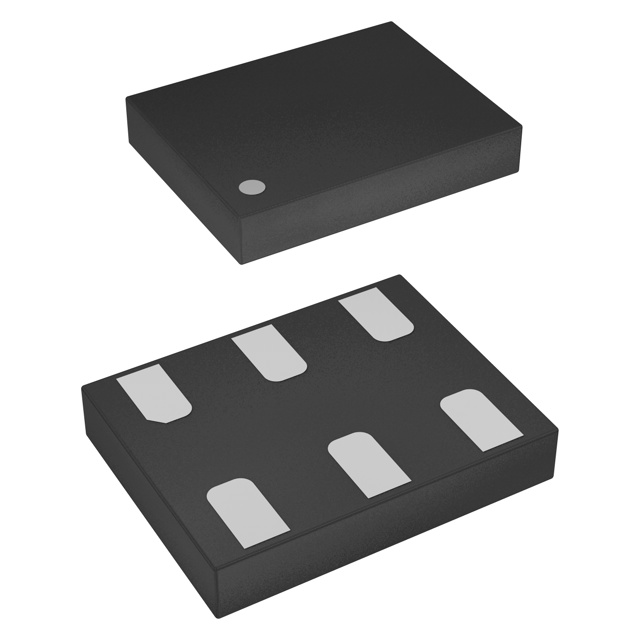

SIT5021AI-2BE-33V-48.004800Y - CDBQXXX-XX

SIT5021AI-2BE-33V-48.004800Y

Active
SiTime

MEMS OSC XO 48.0048MHZ SMD

Deep-Dive with AI

DocumentsManufacturing Notes for SiTime ProductsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationSIT5021AI-2BE-33V-48.004800YSIT5021 Series
Absolute Pull Range (APR)-12.5 - 50 ppm
Base ResonatorMEMSMEMS
Current - Supply (Disable) (Max)-35 - 100 mA
Current - Supply (Max) [Max]55 mA55 - 69 mA
Frequency48.0048 MHz10 - 200 MHz
Frequency Stability5 ppm5 ppm
Function-Enable/Disable, Standby (Power Down)
Height - Seated (Max)-0.039 "
Height - Seated (Max)-1 mm
Height - Seated (Max) [Max] [z]0.8 mm0.8 mm
Height - Seated (Max) [Max] [z]0.031 "0.031 "
Mounting TypeSurface MountSurface Mount
Operating Temperature [Max]85 °C70 - 85 °C
Operating Temperature [Min]-40 °C-40 - -20 C
OutputLVDSLVPECL, LVDS
Package / Case6-SMD, No Lead6-SMD, No Lead
Size / Dimension [x]3.2 mm3.2 - 7 mm
Size / Dimension [x]0.126 in0.126 - 0.276 "
Size / Dimension [y]2.5 mm2.5 - 5 mm
Size / Dimension [y]0.098 in0.098 - 0.197 "
Supplier Device Package-3.2x2.5, 6-SMD, 6-SMD (7x5), 6-SMD (5x3.2)
TypeVCTCXOTCXO, VCTCXO
Voltage - Supply3.3 V2.5 - 3.3 V

SIT5021 Series

MEMS OSC TCXO 125.0000MHZ LVPECL

...
PartCurrent - Supply (Disable) (Max) [Max]Operating Temperature [Min]Operating Temperature [Max]Current - Supply (Max) [Max]FrequencyFrequency StabilityHeight - Seated (Max) [Max]Height - Seated (Max) [Max]Base ResonatorFunctionMounting TypeVoltage - SupplySize / Dimension [x]Size / Dimension [y]Size / Dimension [x]Size / Dimension [y]OutputTypePackage / CaseHeight - Seated (Max) [Max] [z]Height - Seated (Max) [Max] [z]Absolute Pull Range (APR)Supplier Device Package
SiTime
SIT5021AC-1DE-25E-125.000000X
35 mA
-20 C
70 °C
69 mA
125 MHz
5 ppm
0.039 "
1 mm
MEMS
Enable/Disable
Surface Mount
2.5 V
7 mm
5 mm
0.276 "
0.197 "
LVPECL
TCXO
6-SMD, No Lead
SiTime
SIT5021AI-2BE-33VB48.004800D
-40 °C
85 °C
55 mA
48.0048 MHz
5 ppm
MEMS
Surface Mount
3.3 V
3.2 mm
2.5 mm
0.126 in
0.098 in
LVDS
VCTCXO
6-SMD, No Lead
0.8 mm
0.031 "
50 ppm
3.2x2.5, 6-SMD
SiTime
SIT5021AC-1CE-25S-24.000000
100 µA
-20 C
70 °C
69 mA
24 MHz
5 ppm
MEMS
Standby (Power Down)
Surface Mount
2.5 V
5 mm
3.2 mm
0.197 in
0.126 "
LVPECL
TCXO
6-SMD, No Lead
0.8 mm
0.031 "
SiTime
SIT5021AI-2DE-33VM148.500000Y
-40 °C
85 °C
55 mA
148.5 MHz
5 ppm
0.039 "
1 mm
MEMS
Surface Mount
3.3 V
7 mm
5 mm
0.276 "
0.197 "
LVDS
VCTCXO
6-SMD, No Lead
25 ppm
SiTime
SIT5021AI-2BE-33V-48.004800G
-40 °C
85 °C
55 mA
48.0048 MHz
5 ppm
MEMS
Surface Mount
3.3 V
3.2 mm
2.5 mm
0.126 in
0.098 in
LVDS
VCTCXO
6-SMD, No Lead
0.8 mm
0.031 "
SiTime
SIT5021AI-1BE-33VM125.000000G
-40 °C
85 °C
69 mA
125 MHz
5 ppm
MEMS
Surface Mount
3.3 V
3.2 mm
2.5 mm
0.126 in
0.098 in
LVPECL
VCTCXO
6-SMD, No Lead
0.8 mm
0.031 "
25 ppm
SiTime
SIT5021AC-2BE-33E-192.000000
35 mA
-20 C
70 °C
55 mA
192 MHz
5 ppm
MEMS
Enable/Disable
Surface Mount
3.3 V
3.2 mm
2.5 mm
0.126 in
0.098 in
LVDS
TCXO
6-SMD, No Lead
0.8 mm
0.031 "
3.2x2.5, 6-SMD
SiTime
SIT5021AI-2BE-33E-33.333300
35 mA
-40 °C
85 °C
55 mA
33.3333 MHz
5 ppm
MEMS
Enable/Disable
Surface Mount
3.3 V
3.2 mm
2.5 mm
0.126 in
0.098 in
LVDS
TCXO
6-SMD, No Lead
0.8 mm
0.031 "
SiTime
SIT5021AI-2BE-33N-48.004800E
-40 °C
85 °C
55 mA
48.0048 MHz
5 ppm
MEMS
Surface Mount
3.3 V
3.2 mm
2.5 mm
0.126 in
0.098 in
LVDS
TCXO
6-SMD, No Lead
0.8 mm
0.031 "
SiTime
SIT5021AC-2BE-33N-192.000000X
35 mA
-20 C
70 °C
55 mA
192 MHz
5 ppm
MEMS
Surface Mount
3.3 V
3.2 mm
2.5 mm
0.126 in
0.098 in
LVDS
TCXO
6-SMD, No Lead
0.8 mm
0.031 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTape & Reel (TR) 1000$ 9.26

Description

General part information

SIT5021 Series

48.0048 MHz VCTCXO LVDS Oscillator 3.3V 6-SMD, No Lead
