1460241
ObsoletePhoenix Contact

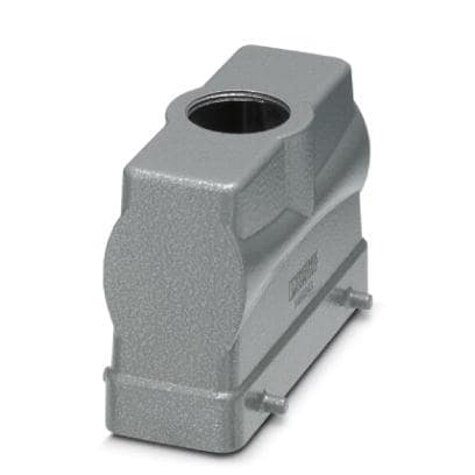

HEAVY DUTY POWER CONNECTORS HC-B 24-TFQ-H-O1STM25G
1460241
ObsoletePhoenix Contact
HEAVY DUTY POWER CONNECTORS HC-B 24-TFQ-H-O1STM25G
Description
General part information
1460241
HEAVY DUTY POWER CONNECTORS HC-B 24-TFQ-H-O1STM25G
Technical Specifications
Parameters and characteristics for this part
| Specification | 1460241 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B24 |
| Size / Dimension Height | 2.992 in |
| Size / Dimension Length | 4.724 in |
| Size / Dimension Width | 1.693 in |
| Style | Top Entry |
| Thread Size | M25 |
