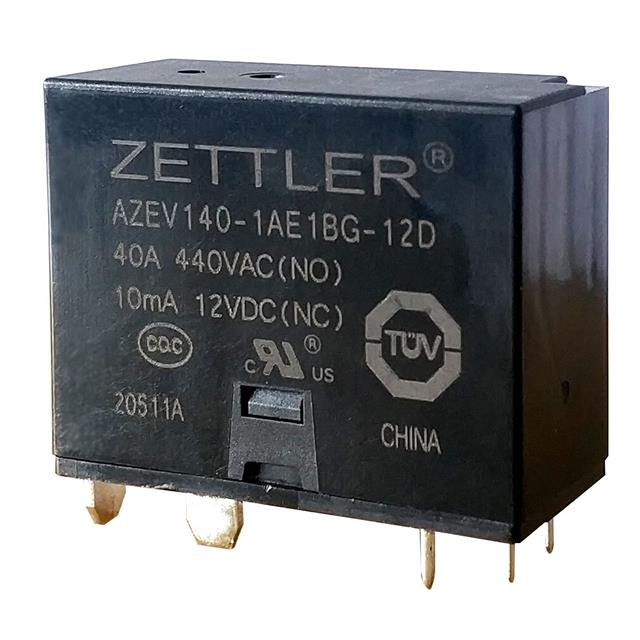

AZEV140-1AE-12D
ActiveAmerican Zettler
RELAY EV CHARGING SPST 50A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AZEV140-1AE-12D
ActiveAmerican Zettler
RELAY EV CHARGING SPST 50A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AZEV140-1AE-12D | AZEV140 Series |
|---|---|---|
| Approval Agency | CQC, TUV, cURus | CQC, TUV, cURus |
| Coil Current | 175.2 mA | 87.6 - 423.7 mA |
| Coil Insulation | Class F | Class F |
| Coil Resistance | 68.5 Ohms | 11.8 - 274 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 12 VDC | 5 - 24 VDC |
| Contact Form | SPST-NO (1 Form A) | DPST-NO/NC, SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Nickel (AgNi), Silver Tin Oxide (AgSnO), Gold (Au) |
| Contact Rating (Current) | 50 A | 50 A |
| Load - Max Switching | 22000 VA | 22000 VA |
| Mounting Type | Through Hole | Through Hole |
| Must Operate Voltage | 9 VDC | 3.75 - 18 VDC |
| Must Release Voltage | 0.6 VDC | 0.25 - 1.2 VDC |
| Operate Time | 30 ms | 30 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | EV Charging | EV Charging |
| Release Time | 10 ms | 10 ms |
| Switching Voltage | 440 VAC | 440 VAC |
| Termination Style | 4.7 mm, 0.187 in | 0.187 - 4.7 mm |
| Termination Style | Quick Connect, PC Pin | Quick Connect, PC Pin |
AZEV140 Series
RELAY EV CHARGING DPST 50A 5V
| Part | Contact Material | Operate Time | Coil Voltage | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Mounting Type | Contact Form | Switching Voltage | Termination Style | Termination Style | Coil Resistance | Must Operate Voltage | Contact Rating (Current) | Coil Insulation | Coil Current | Approval Agency | Coil Type | Release Time | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
American Zettler AZEV140-1AE1BG-5D | Gold (Au), Silver Nickel (AgNi), Silver Tin Oxide (AgSnO) | 30 ms | 5 VDC | 22000 VA | 85 °C | -40 °C | 0.25 VDC | Through Hole | DPST-NO/NC | 440 VAC | 0.187 in, 4.7 mm | PC Pin, Quick Connect | 11.8 Ohms | 3.75 VDC | 50 A | Class F | 423.7 mA | CQC, cURus, TUV | Non Latching | 10 ms | EV Charging |
American Zettler AZEV140-1AE1BG-12D | Gold (Au), Silver Nickel (AgNi), Silver Tin Oxide (AgSnO) | 30 ms | 12 VDC | 22000 VA | 85 °C | -40 °C | 0.6 VDC | Through Hole | DPST-NO/NC | 440 VAC | 0.187 in, 4.7 mm | PC Pin, Quick Connect | 68.5 Ohms | 9 VDC | 50 A | Class F | 175.2 mA | CQC, cURus, TUV | Non Latching | 10 ms | EV Charging |
American Zettler AZEV140-1AE-12D | Silver Tin Oxide (AgSnO) | 30 ms | 12 VDC | 22000 VA | 85 °C | -40 °C | 0.6 VDC | Through Hole | SPST-NO (1 Form A) | 440 VAC | 0.187 in, 4.7 mm | PC Pin, Quick Connect | 68.5 Ohms | 9 VDC | 50 A | Class F | 175.2 mA | CQC, cURus, TUV | Non Latching | 10 ms | EV Charging |
American Zettler AZEV140-1AE-24D | Silver Tin Oxide (AgSnO) | 30 ms | 24 VDC | 22000 VA | 85 °C | -40 °C | 1.2 VDC | Through Hole | SPST-NO (1 Form A) | 440 VAC | 0.187 in, 4.7 mm | PC Pin, Quick Connect | 274 Ohms | 18 VDC | 50 A | Class F | 87.6 mA | CQC, cURus, TUV | Non Latching | 10 ms | EV Charging |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.82 | |
| 10 | $ 9.20 | |||
| 25 | $ 8.18 | |||
| 50 | $ 7.77 | |||
| 100 | $ 7.36 | |||
| 250 | $ 6.54 | |||
| 450 | $ 6.14 | |||
| 950 | $ 5.73 | |||
Description
General part information
AZEV140 Series
EV Charging Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
