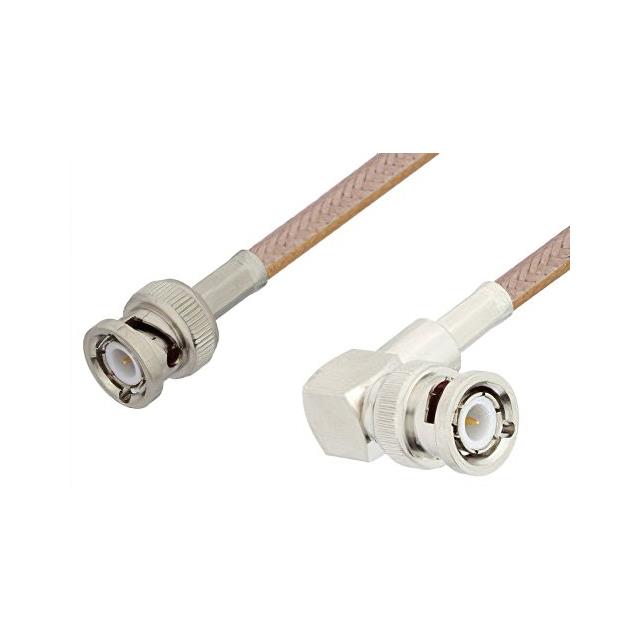

PE3116-60
ActivePasternack
BNC MALE TO BNC MALE RIGHT ANGLE
PE3116-60
ActivePasternack
BNC MALE TO BNC MALE RIGHT ANGLE
Description
General part information
PE3116-60
Cable Assembly Coaxial BNC to BNC RG-400 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3116-60 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | BNC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 400 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Overall Impedance | 50 Ohms |
| Style | BNC |
