629-7W2-650-4N4

Active

EDAC Inc.

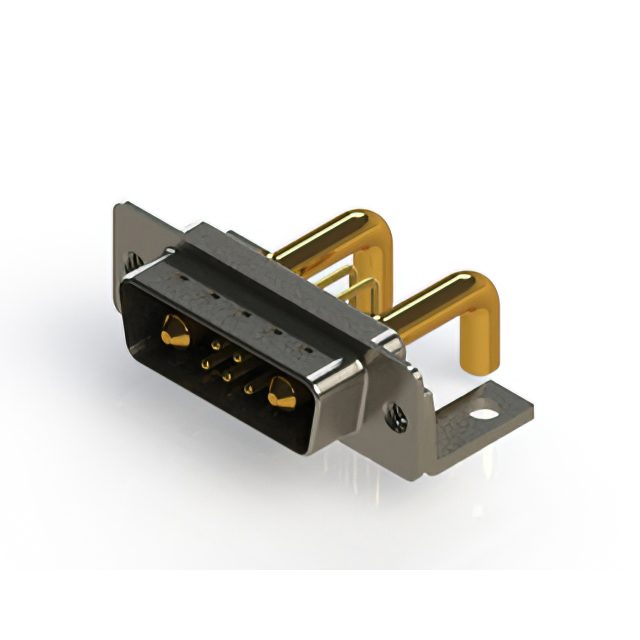

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DA-7W2, PLUG, 7 CONTACTS, 5 SIGNAL, 2 POWER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

629-7W2-650-4N4

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DA-7W2, PLUG, 7 CONTACTS, 5 SIGNAL, 2 POWER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-7W2-650-4N4

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 7W2
Termination	Solder
Voltage Rating	125 VDC

629-7W2 Series

...

Part	Color	Contact Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Connector Style	Termination	Number of Positions [custom]	Number of Positions [custom]	Mounting Type	Dielectric Material	Contact Finish Thickness	Voltage Rating	Contact Material	Current Rating (Amps)	Material Flammability Rating	Features	Contact Finish	Backset Spacing	Backset Spacing	Shell Size, Connector Layout	Shell Material, Finish	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]
EDAC Inc. 629-7W2-240-1N1	Black	Signal and Power	2	-55 °C	125 °C	Male Pins Plug	Combo D-Sub	Solder	7	2	Through Hole Right Angle	Polyester Thermoplastic	Flash	125 VDC	Copper Alloy	10A 5A	UL94 V-0	Grounding Indents Shielded	Gold	9.4 mm	0.37 in	2 (DA A) - 7W2	Nickel Plated Steel	Housing/Shell (Unthreaded)
EDAC Inc. 629-7W2-640-3TC	Black	Signal and Power	2	-55 °C	125 °C	Male Pins Plug	Combo D-Sub	Solder	7	2	Through Hole Right Angle	Polyester Thermoplastic		125 VDC	Copper Alloy		UL94 V-0	Grounding Indents Mounting Brackets	Gold	9.4 mm	0.37 in	2 (DA A) - 7W2		Housing/Shell (M3)	0.76 Ám	30 Áin	5 A 30 A
EDAC Inc. 629-7W2-650-1T4	Black	Signal and Power	2	-55 °C	125 °C	Male Pins Plug	Combo D-Sub	Solder	7	2	Through Hole Right Angle	Polyester Thermoplastic		125 VDC	Copper Alloy	10A 5A	UL94 V-0	Grounding Indents Mounting Brackets	Gold	9.4 mm	0.37 in	2 (DA A) - 7W2		Housing/Shell (4-40)	0.76 Ám	30 Áin
EDAC Inc. 629-7W2-240-2TE	Black	Signal and Power	2	-55 °C	125 °C	Male Pins Plug	Combo D-Sub	Solder	7	2	Through Hole Right Angle	Polyester Thermoplastic	Flash	125 VDC	Copper Alloy		UL94 V-0	Grounding Indents Mounting Brackets	Gold	9.4 mm	0.37 in	2 (DA A) - 7W2		M3			5 A 20 A
EDAC Inc. 629-7W2-650-4ND	Black	Signal and Power	2	-55 °C	125 °C	Male Pins Plug	Combo D-Sub	Solder	7	2	Through Hole Right Angle	Polyester Thermoplastic		125 VDC	Copper Alloy		UL94 V-0	Board Lock Grounding Indents Mounting Brackets	Gold	9.4 mm	0.37 in	2 (DA A) - 7W2	Nickel Plated Steel	M3	0.76 Ám	30 Áin	5 A 40 A
EDAC Inc. 629-7W2-240-7NE	Black	Coax Signal	2	-55 °C	125 °C	Male Pins Plug	Combo D-Sub	Solder	7		Through Hole Right Angle	Polyester Thermoplastic	Flash	125 VDC	Copper Alloy		UL94 V-0	Grounding Indents Mounting Brackets	Gold	9.4 mm	0.37 in	2 (DA A) - 7W2	Nickel Plated Steel	M3				2	5
EDAC Inc. 629-7W2-240-1T4	Black	Signal and Power	2	-55 °C	125 °C	Male Pins Plug	Combo D-Sub	Solder	7	2	Through Hole Right Angle	Polyester Thermoplastic	Flash	125 VDC	Copper Alloy	10A 5A	UL94 V-0	Grounding Indents Mounting Brackets	Gold	9.4 mm	0.37 in	2 (DA A) - 7W2		Housing/Shell (4-40)
EDAC Inc. 629-7W2-250-1TD	Black	Signal and Power	2	-55 °C	125 °C	Male Pins Plug	Combo D-Sub	Solder	7	2	Through Hole Right Angle	Polyester Thermoplastic	Flash	125 VDC	Copper Alloy	10A 5A	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	Gold	9.4 mm	0.37 in	2 (DA A) - 7W2		M3
EDAC Inc. 629-7W2-650-4N4	Black	Signal and Power	2	-55 °C	125 °C	Male Pins Plug	Combo D-Sub	Solder	7	2	Through Hole Right Angle	Polyester Thermoplastic		125 VDC	Copper Alloy		UL94 V-0	Grounding Indents Mounting Brackets	Gold	9.4 mm	0.37 in	2 (DA A) - 7W2	Nickel Plated Steel	Housing/Shell (4-40)	0.76 Ám	30 Áin	5 A 40 A
EDAC Inc. 629-7W2-240-1T2	Black	Signal and Power	2	-55 °C	125 °C	Male Pins Plug	Combo D-Sub	Solder	7	2	Through Hole Right Angle	Polyester Thermoplastic	Flash	125 VDC	Copper Alloy	10A 5A	UL94 V-0		Gold	9.4 mm	0.37 in	2 (DA A) - 7W2		Housing/Shell (4-40)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 13.01
Newark	Each	1	$ 16.73
		500	$ 15.44
		1000	$ 14.87
		5000	$ 13.14

Description

General part information

629-7W2 Series

7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
