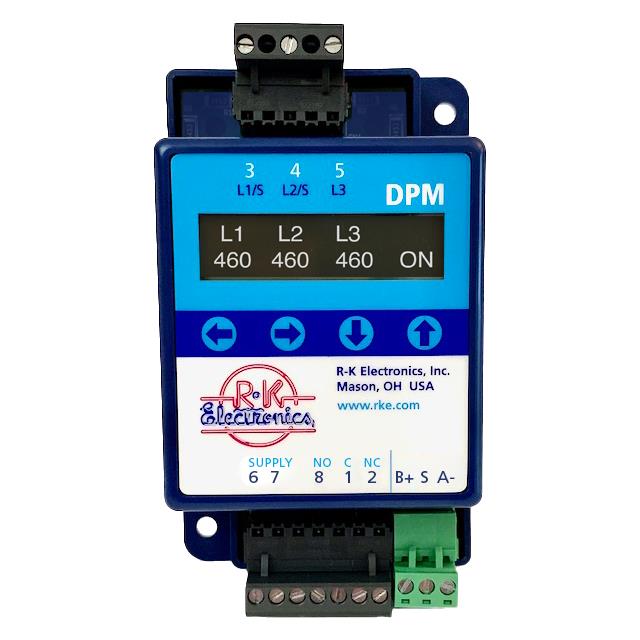

DPM-24D-MRTU-T
ActiveR-K Electronics, Inc.
3 VOLT RELAY, 24VDC, 200-600VAC,
DPM-24D-MRTU-T
ActiveR-K Electronics, Inc.
3 VOLT RELAY, 24VDC, 200-600VAC,
Description
General part information
DPM-24D-MRTU-T
3 VOLT RELAY, 24VDC, 200-600VAC,
Technical Specifications
Parameters and characteristics for this part
| Specification | DPM-24D-MRTU-T |
|---|---|
| Delay Time (Maximum) | 10 Sec |
| Delay Time (Minimum) | 2 Sec |
| Function | Multiple |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
| Quick Connect Size (0.187") | 0.187 in |
| Quick Connect Size (0.250") | 0.25 in |
| Quick Connect Size (Primary) | 0.187 in |
| Quick Connect Size (Secondary) | 0.25 in |
| Termination Style | Quick Connect |
| Voltage - Supply | 24 VDC |
