1N3156UR-1
ActiveMicrochip Technology

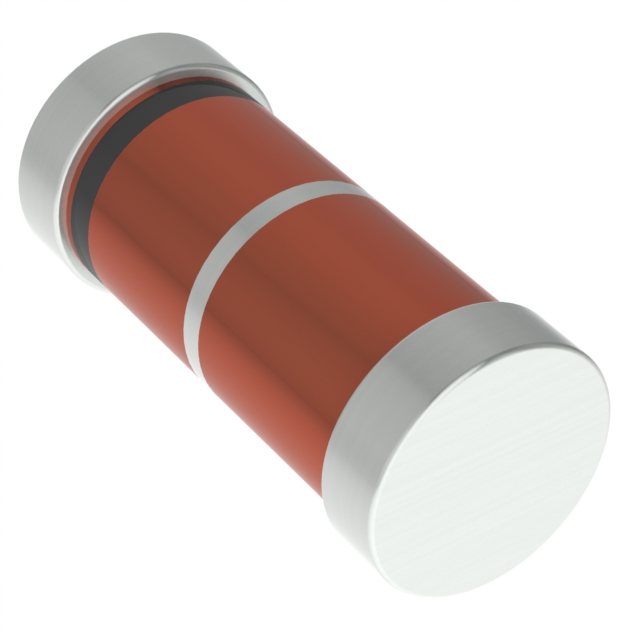

ZENER DIODE SINGLE 2-PIN 8.4V, 5%, 15OHM, 500MW DO-213AA
Deep-Dive with AI
Search across all available documentation for this part.
1N3156UR-1
ActiveMicrochip Technology
ZENER DIODE SINGLE 2-PIN 8.4V, 5%, 15OHM, 500MW DO-213AA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1N3156UR-1 | 1N3156UR-1-Zener-Diode Series |
|---|---|---|
| - | - | |
| Current - Reverse Leakage @ Vr | 10 µA | 10 µA |
| Impedance (Max) (Zzt) [Max] | 15 Ohms | 15 Ohms |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 347 °F | 347 °F |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Package / Case | DO-213AA | DO-213AA |
| Power - Max [Max] | 500 mW | 500 mW |
| Supplier Device Package | DO-213AA | DO-213AA |
| Tolerance | 4.7 % | 4.7 % |
| Voltage - Zener (Nom) (Vz) | 8.4 V | 8.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 34.07 | |
| Microchip Direct | N/A | 1 | $ 36.68 | |
| Newark | Each | 100 | $ 34.06 | |
| 500 | $ 32.75 | |||
1N3156UR-1-Zener-Diode Series
Zener Diode Single 2-Pin 8.4V, 5%, 15Ohm, 500mW DO-213AA
| Part | Voltage - Zener (Nom) (Vz) | Power - Max [Max] | Current - Reverse Leakage @ Vr | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Impedance (Max) (Zzt) [Max] | Supplier Device Package | Tolerance | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology 1N3156UR-1 | ||||||||||
Microchip Technology 1N3156UR-1 | 8.4 V | 500 mW | 10 µA | Surface Mount | -65 ░C | 347 °F | 15 Ohms | DO-213AA | 4.7 % | DO-213AA |
