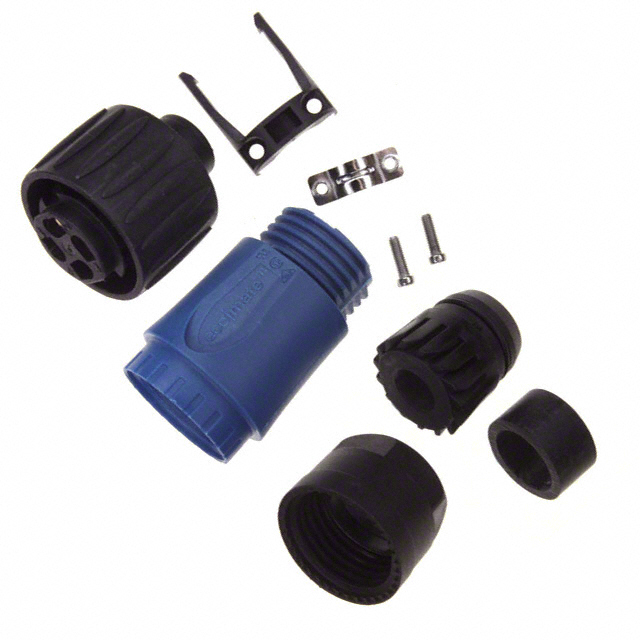

C016 20D003 210 10

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 4POS GOLD SCREW

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 4POS GOLD SCREW

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN PLUG FMALE 4POS GOLD SCREW

Part	Orientation	Features	Mounting Type	Termination	Number of Positions	Current Rating (Amps)	Voltage Rating	Primary Material	Connector Type	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection
Amphenol Tuchel Industrial C016 20D003 200 10	Keyed	Cable Clamp	Free Hanging (In-Line)	Screw	4	16 A	400 V	Plastic	Female Sockets, Plug	Gold	100 °C	-40 °C	IP65, IP67
Amphenol Tuchel Industrial C016 20D003 200 12	Keyed	Cable Clamp	Free Hanging (In-Line)	Screw	4	16 A	400 V	Plastic	Female Sockets, Plug	Gold	100 °C	-40 °C	IP65, IP67
Amphenol Tuchel Industrial C016 20D003 210 10	Keyed	Cable Clamp, Strain Relief	Free Hanging (In-Line)	Screw	4	16 A	400 V	Plastic	Female Sockets, Plug	Gold	100 °C	-40 °C	IP65, IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Screw
