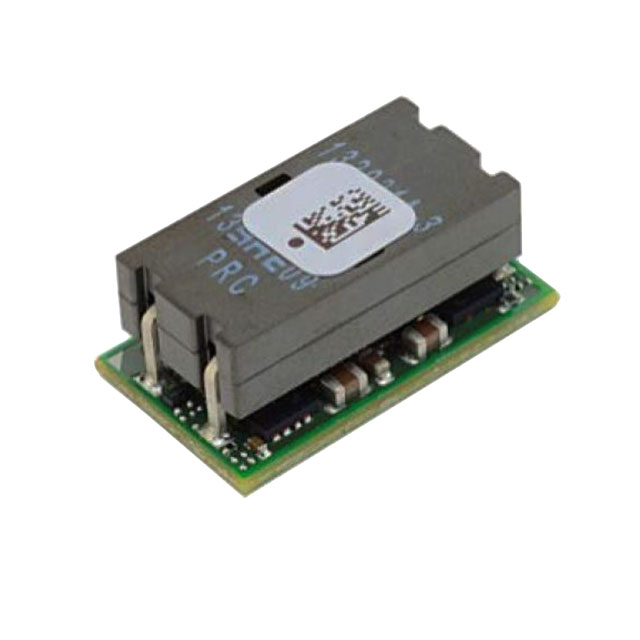

UVXS1212A0X3-SRZ
ActiveOmniOn Power™
DC DC CNVRTR 0.6-5.5V 0.6-5.5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UVXS1212A0X3-SRZ
ActiveOmniOn Power™
DC DC CNVRTR 0.6-5.5V 0.6-5.5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UVXS1212A0X3-SRZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) | 12 A |
| Current - Output (Max) | 12 A |
| Efficiency | 95 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 28-SMD Module |
| Size / Dimension [x] | 0.8 " |
| Size / Dimension [x] | 20.3 mm |
| Size / Dimension [y] | 11.4 mm |
| Size / Dimension [y] | 0.45 in |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.34 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14.4 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.6 V |
| Voltage - Output 2 [Max] | 5.5 V |
| Voltage - Output 2 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 200 | $ 18.46 | |
Description
General part information
UVXS1212 Series
Non-Isolated PoL Module DC DC Converter 2 Output 0.6 ~ 5.5V 0.6 ~ 5.5V 12A, 12A 4.5V - 14.4V Input
