10-350349-243
ActiveAmphenol Industrial Operations

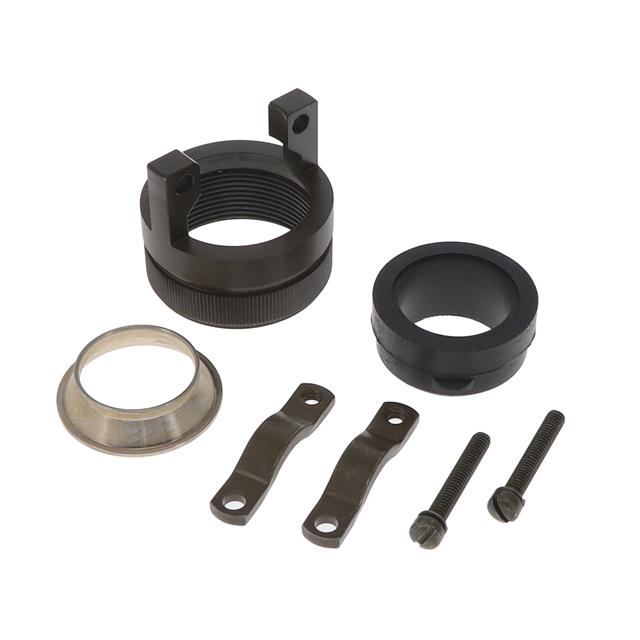

CONN CAB CLAMP SZ24 1 7/16-18
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10-350349-243
ActiveAmphenol Industrial Operations
CONN CAB CLAMP SZ24 1 7/16-18
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10-350349-243 | 10-350349 Series |
|---|---|---|
| Cable Exit | 180 ° | 180 ° |
| Cable Opening | - | 0.23 - 0.428 in |
| Cable Opening | - | 10.87 mm |
| Cable Opening | - | 5.84 mm |
| Cable Opening | - | 0.922 - 1.2 in |
| Cable Opening | - | 23.42 - 30.48 mm |
| Cable Opening [Max] [diameter] | 23.52 mm | 23.52 mm |
| Cable Opening [Max] [diameter] | 0.926 in | 0.926 in |
| Cable Opening [Min] [diameter] | 0.611 in | 0.611 in |
| Cable Opening [Min] [diameter] | 15.52 mm | 15.52 mm |
| Color | Olive | Black, Olive |
| Diameter - Outside | - | 26.2 mm |
| Diameter - Outside | - | 1.031 in |
| Diameter - Outside [diameter] | 1.671 in | 1.671 - 2.188 in |
| Diameter - Outside [diameter] | 42.44 mm | 42.44 - 55.58 mm |
| Features | Clamp Screws | Clamp Screws |
| For Use With/Related Products | QWLD Series Connectors | QWLD Series Connectors |
| Ingress Protection | Waterproof | Waterproof |
| Material | Aluminum | Aluminum |
| Plating | Cadmium | Zinc Alloy, Cadmium |
| Shell Size - Insert | 24 | 14 - 32 |
| Shielding | Unshielded | Unshielded |
| Thread Size | 1 7/16-18 UNEF | 3/4-20 UNEF, 1 7/16-18 UNEF |
| Thread Size | - | - |
| Type | Cable Clamp | Cable Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.79 | |
| 10 | $ 24.47 | |||
| 25 | $ 22.94 | |||
| 50 | $ 21.85 | |||
| 100 | $ 20.80 | |||
| 250 | $ 19.50 | |||
| 500 | $ 18.65 | |||
10-350349 Series
CONN CAB CLAMP SZ14 BLK 3/4-20
| Part | Thread Size | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [custom] | Plating | Ingress Protection | Color | Type | Shell Size - Insert | Material | Shielding | For Use With/Related Products | Diameter - Outside | Diameter - Outside | Cable Exit | Features | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations 10-350349-14Y | 3/4-20 UNEF | 0.23 in, 0.428 in | 10.87 mm | 5.84 mm | Zinc Alloy | Waterproof | Black | Cable Clamp | 14 | Aluminum | Unshielded | QWLD Series Connectors | 26.2 mm | 1.031 in | 180 ° | Clamp Screws | |||||||||
Amphenol Industrial Operations 10-350349-243 | 1 7/16-18 UNEF | Cadmium | Waterproof | Olive | Cable Clamp | 24 | Aluminum | Unshielded | QWLD Series Connectors | 180 ° | Clamp Screws | 23.52 mm | 0.926 in | 0.611 in | 15.52 mm | 1.671 in | 42.44 mm | ||||||||
Amphenol Industrial Operations 10-350349-323 | Cadmium | Waterproof | Olive | Cable Clamp | 32 | Aluminum | Unshielded | QWLD Series Connectors | 180 ° | Clamp Screws | 2.188 in | 55.58 mm | 0.922 in, 1.2 in | 23.42 mm, 30.48 mm |
Description
General part information
10-350349 Series
Olive Connector Cable Clamp 1 7/16-18 UNEF 24
