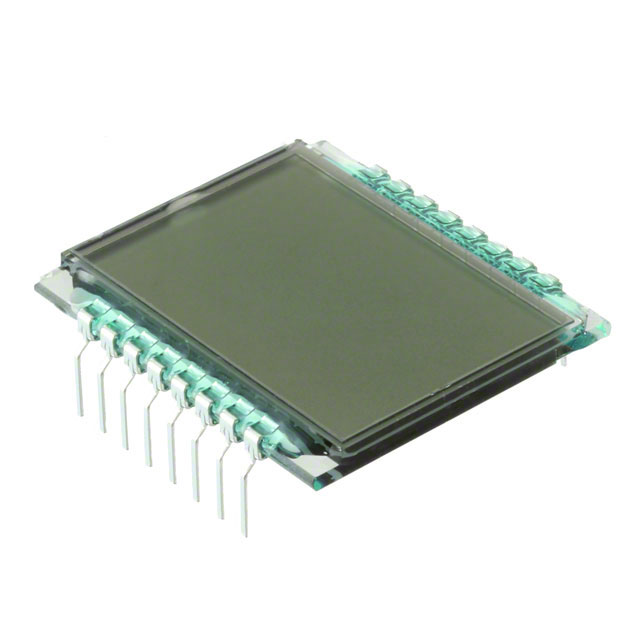

LCD-A2X1C50TR

Active

Lumex Opto/Components Inc.

LCD MOD 3 DIG 2.5 X 1 REFLECTIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 3 DIG 2.5 X 1 REFLECTIVE

Technical Specifications

Parameters and characteristics for this part

LCD MOD 3 DIG 2.5 X 1 REFLECTIVE

Part	Character Size [custom]	Character Size [custom]	Viewing Area [y]	Viewing Area [x]	Display Mode	Text Color	Interface	Background Color	Character Format	Display Format [y]	Display Format [x]	Backlight	Display Type	Number of Characters [custom]	Operating Temperature [Min]	Operating Temperature [Max]
Lumex Opto/Components Inc. LCD-A2X1C50TR	7 mm	12.17 mm	17.17 mm	26 mm	Reflective	Black	Parallel	Gray	7-Segment	1	2.5	Without Backlight	TN - Twisted Nematic	3	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight Parallel 30.00mm x 26.17mm x 2.80mm
