Description
General part information

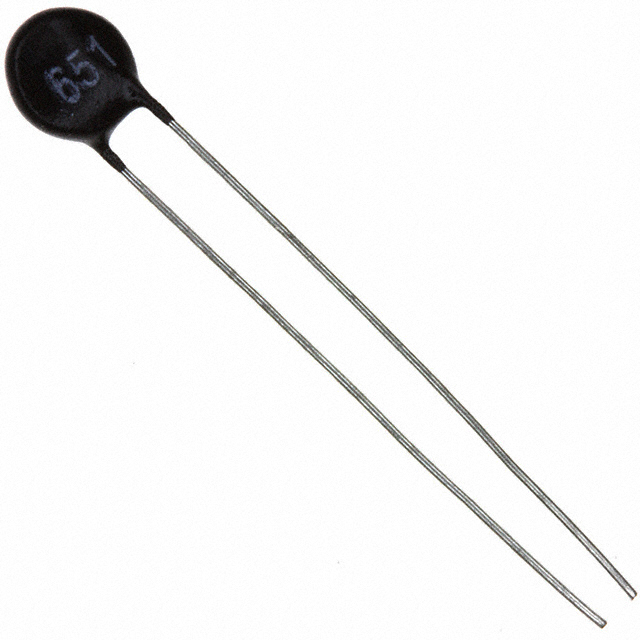

MF11-0060010
NTC Thermistor 600 Disc, 6.5mm Dia x 5.0mm W
Technical Specifications
Parameters and characteristics for this part
| Specification | MF11-0060010 |
|---|---|
| B Value Tolerance | 5 % |
| B25/50 | 3600 K |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package Diameter | 6.5 mm |
| Package Name | Disc |
| Package Width | 5 mm |
| Power - Max | 0.5 W |
| Resistance (Ohms) | 600 Ohm |
| Resistance Tolerance (%) | 10 % |
