EN2C7F26G2W

Active

Switchcraft Inc.

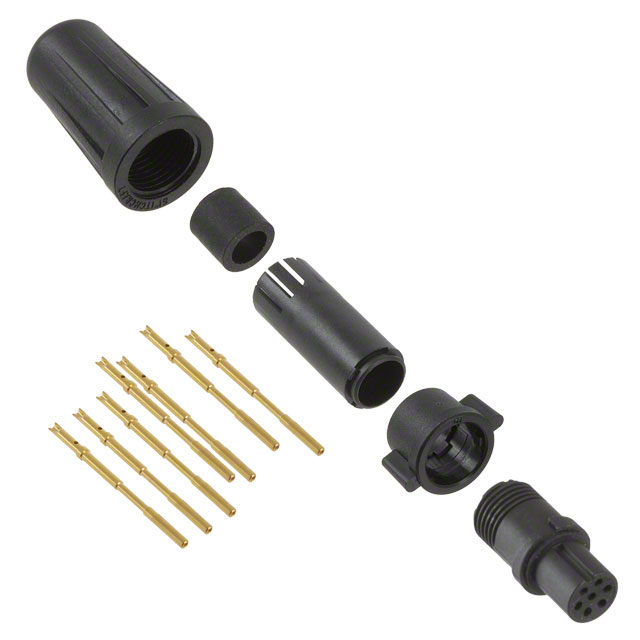

STANDARD CIRCULAR CONNECTOR 7#26 CORD MOUNT CONN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN2C7F26G2W

Active

Switchcraft Inc.

STANDARD CIRCULAR CONNECTOR 7#26 CORD MOUNT CONN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2C7F26G2W	EN2C7F Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	2.54 - 3.56 mm
Cable Opening	-	0.1 - 0.14 in
Cable Opening	-	0.18 in
Cable Opening	-	0.22 in
Cable Opening	-	4.57 mm
Cable Opening	-	5.59 mm
Cable Opening [Max] [diameter]	4.57 mm	4.57 mm
Cable Opening [Max] [diameter]	0.18 in	0.18 in
Cable Opening [Min] [diameter]	3.56 mm	3.56 mm
Cable Opening [Min] [diameter]	0.14 in	0.14 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, Backshell, Winged	Coupling Nut, Backshell, Winged
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	7	7
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp, Solder Cup	Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

EN2C7F Series

STANDARD CIRCULAR CONNECTOR 7#26 CORD MOUNT CONN

Part	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Color	Material Flammability Rating	Features	Orientation	Voltage Rating	Mounting Type	Applications	Shielding	Primary Material	Connector Type	Contact Material	Contact Finish - Mating	Fastening Type	Termination	Backshell Material, Plating	Insert Material	Ingress Protection	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Switchcraft Inc. EN2C7F26G2W	7	85 °C	-40 °C	Black	UL94 V-0	Backshell, Coupling Nut, Winged	Keyed	125 VAC	Free Hanging (In-Line)	Communication Systems, Industrial, Marine, Medical	Unshielded	Plastic	Female Sockets, Plug	Copper Alloy	Gold	Bayonet Lock	Crimp, Solder Cup	Thermoplastic	Elastomer	IP66, IP67, IP68	4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C7F26G1W	7	85 °C	-40 °C	Black	UL94 V-0	Backshell, Coupling Nut, Winged	Keyed	125 VAC	Free Hanging (In-Line)	Communication Systems, Industrial, Marine, Medical	Unshielded	Plastic	Female Sockets, Plug	Copper Alloy	Gold	Bayonet Lock	Crimp, Solder Cup	Thermoplastic	Elastomer	IP66, IP67, IP68					2.54 mm, 3.56 mm	0.1 in, 0.14 in
Switchcraft Inc. EN2C7F26G2	7	85 °C	-40 °C	Black	UL94 V-0	Backshell, Coupling Nut	Keyed	125 VAC	Free Hanging (In-Line)	Communication Systems, Industrial, Marine, Medical	Unshielded	Plastic	Female Sockets, Plug	Copper Alloy	Gold	Bayonet Lock	Crimp, Solder Cup	Thermoplastic	Elastomer	IP66, IP67, IP68	4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C7F26DCW	7	85 °C	-40 °C	Black	UL94 V-0	Backshell, Coupling Nut, Winged	Keyed	125 VAC	Free Hanging (In-Line)	Communication Systems, Industrial, Marine, Medical	Unshielded	Plastic	Female Sockets, Plug	Copper Alloy	Gold	Bayonet Lock	Crimp, Solder Cup	Thermoplastic	Elastomer	IP66, IP67, IP68
Switchcraft Inc. EN2C7F26G1	7	85 °C	-40 °C	Black	UL94 V-0	Backshell, Coupling Nut	Keyed	125 VAC	Free Hanging (In-Line)	Communication Systems, Industrial, Marine, Medical	Unshielded	Plastic	Female Sockets, Plug	Copper Alloy	Gold	Bayonet Lock	Crimp, Solder Cup	Thermoplastic	Elastomer	IP66, IP67, IP68					2.54 mm, 3.56 mm	0.1 in, 0.14 in
Switchcraft Inc. EN2C7F26DC	7	85 °C	-40 °C	Black	UL94 V-0	Backshell, Coupling Nut	Keyed	125 VAC	Free Hanging (In-Line)	Communication Systems, Industrial, Marine, Medical	Unshielded	Plastic	Female Sockets, Plug	Copper Alloy	Gold	Bayonet Lock	Crimp, Solder Cup	Thermoplastic	Elastomer	IP66, IP67, IP68
Switchcraft Inc. EN2C7F26G3W	7	85 °C	-40 °C	Black	UL94 V-0	Backshell, Coupling Nut, Winged	Keyed	125 VAC	Free Hanging (In-Line)	Communication Systems, Industrial, Marine, Medical	Unshielded	Plastic	Female Sockets, Plug	Copper Alloy	Gold	Bayonet Lock	Crimp, Solder Cup	Thermoplastic	Elastomer	IP66, IP67, IP68							0.18 in	0.22 in	4.57 mm	5.59 mm
Switchcraft Inc. EN2C7F26G3	7	85 °C	-40 °C	Black	UL94 V-0	Backshell, Coupling Nut	Keyed	125 VAC	Free Hanging (In-Line)	Communication Systems, Industrial, Marine, Medical	Unshielded	Plastic	Female Sockets, Plug	Copper Alloy	Gold	Bayonet Lock	Crimp, Solder Cup	Thermoplastic	Elastomer	IP66, IP67, IP68							0.18 in	0.22 in	4.57 mm	5.59 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.07
		10	$ 10.06
		25	$ 9.10
		50	$ 9.07
Sager	N/A	100	$ 14.16
		200	$ 13.97

Description

General part information

EN2C7F Series

7 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup
