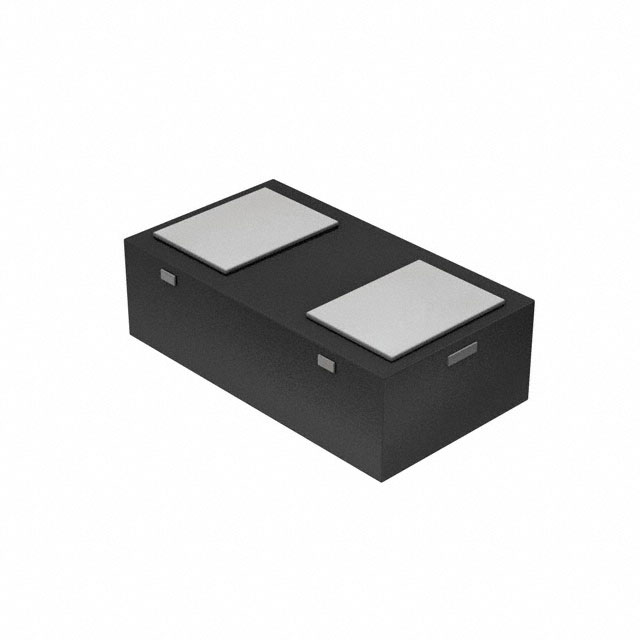

ACPDQC24VE-HF

Active

Comchip Technology

TVS DIODE 24VWM 44V 0402C/SOD923

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 24VWM 44V 0402C/SOD923

Technical Specifications

Parameters and characteristics for this part

Specification	ACPDQC24VE-HF

Bidirectional Channels [custom]	1
Capacitance @ Frequency	16 pF
Current - Peak Pulse (10/1000µs)	2.5 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	0402 (1006 Metric)
Power - Peak Pulse	110 W
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	0402C, SOD-923F
Type	Zener
Voltage - Breakdown (Min) [Min]	26.5 V
Voltage - Clamping (Max) @ Ipp [Max]	44 V
Voltage - Reverse Standoff (Typ)	24 V

TVS DIODE 24VWM 44V 0402C/SOD923

Part	Power Line Protection	Current - Peak Pulse (10/1000µs)	Power - Peak Pulse	Bidirectional Channels [custom]	Type	Voltage - Breakdown (Min) [Min]	Voltage - Reverse Standoff (Typ)	Package / Case	Qualification	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance @ Frequency	Voltage - Clamping (Max) @ Ipp [Max]	Grade	Mounting Type
Comchip Technology ACPDQC24VE-HF		2.5 A	110 W	1	Zener	26.5 V	24 V	0402 (1006 Metric)	AEC-Q101	0402C, SOD-923F	125 ¯C	-55 °C	16 pF	44 V	Automotive	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

44V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount 0402C/SOD-923F
