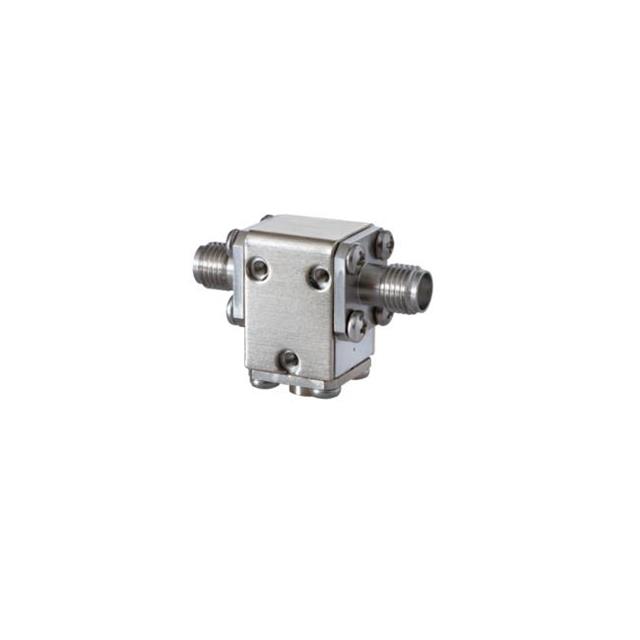

DSI1014-3
ActiveDiTom Microwave
SPACE ISOLATOR 10.7-14.8 GHZ
DSI1014-3
ActiveDiTom Microwave
SPACE ISOLATOR 10.7-14.8 GHZ
Description
General part information
DSI1014-3
SPACE ISOLATOR 10.7-14.8 GHZ
Technical Specifications
Parameters and characteristics for this part
| Specification | DSI1014-3 |
|---|---|
| Connector Type | SMA-MALE |
| Frequency (Max) | 22 GHz |
| Frequency (Min) | 27 GHz |
| Insertion Loss (Max) | 0.3 dB |
| Isolation (Min) | 20 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| Power - Average Forward | 10 W |
| Type | Isolator |
| VSWR | 1.2 |
