Description
General part information

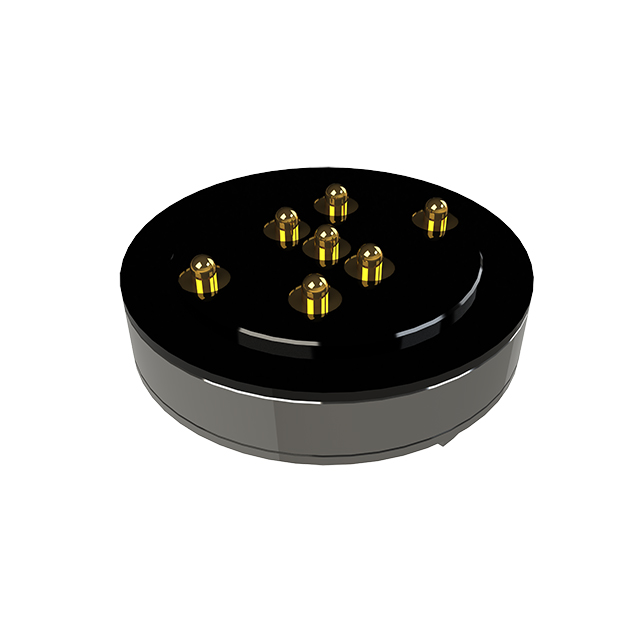

685N05222011G1E
7 Position Spring Compression Contact, Magnetic Connector Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 685N05222011G1E |
|---|---|
| Connector Type | Compression Contact, Magnetic |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Material | Brass |
| Mounting Type | Through Hole |
| Number of Contacts | 7 |
