SC3326F-330
ActiveSignal Transformer
FIXED IND 33UH 2.5A 100 MOHM SMD
SC3326F-330
ActiveSignal Transformer
FIXED IND 33UH 2.5A 100 MOHM SMD
Description
General part information
SC3326F-330

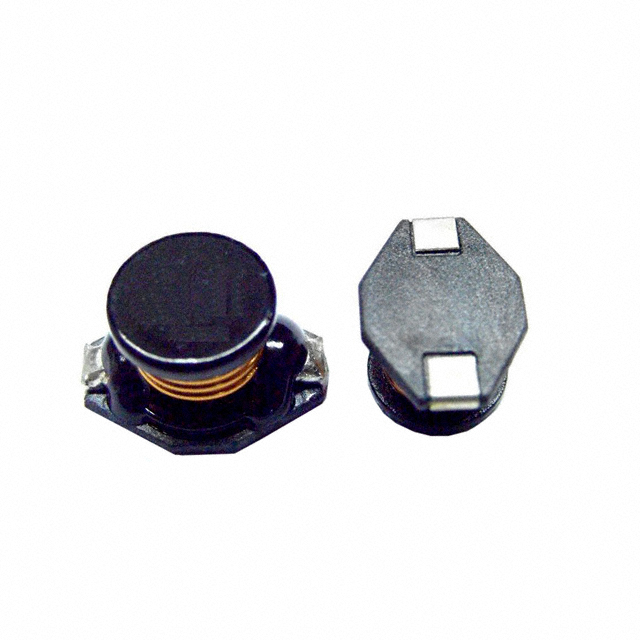

33 µH Unshielded Wirewound Inductor 2.5 A 100mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SC3326F-330 |
|---|---|
| Current - Saturation (Isat) | 4.3 A |
| Current Rating | 2.5 A |
| DC Resistance (DCR) (Max) | 100 mOhm |
| Height - Seated (Max) | 0.315 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.53 in |
| Size / Dimension Width | 0.39 in |
| Tolerance | 20 % |
| Type | Wirewound |
