717-052-525-201
ActiveEDAC Inc.

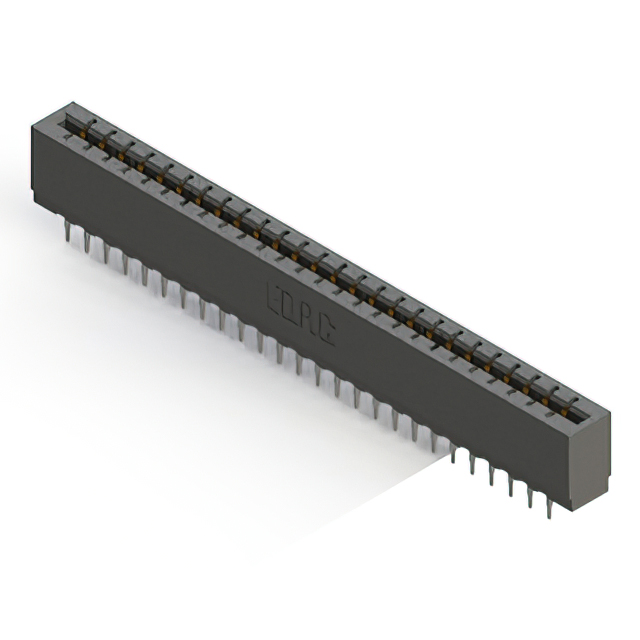

CONN EDGE DUAL FMALE 52POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
717-052-525-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 52POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 717-052-525-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Press-Fit |
| Termination Rows | 2 |
717-052 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Gender | Termination | Contact Type | Number of Rows | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Termination Rows | Card Type | Contact Material | Mounting Type | Material - Insulation | Number of Positions/Bay/Row [custom] | Number of Positions | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Female | Press-Fit | Cantilever | 2 | Gold | -40 °C | 105 ░C | Dual | 2 | Non Specified - Dual Edge | Copper Alloy | Through Hole | Polyester Thermoplastic | 26 | 52 | 0.156 in | 3.96 mm |
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Female | Press-Fit Wire Wrap | Cantilever | 2 | Gold | -40 °C | 105 ░C | Dual | 2 | Non Specified - Dual Edge | Copper Alloy | Through Hole | Polyester Thermoplastic | 26 | 52 | 0.156 in | 3.96 mm |
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Female | Press-Fit | Cantilever | 2 | Gold | -40 °C | 105 ░C | Dual | 2 | Non Specified - Dual Edge | Copper Alloy | Through Hole | Polyester Thermoplastic | 26 | 52 | 0.156 in | 3.96 mm |
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Female | Press-Fit Wire Wrap | Cantilever | 2 | Gold | -40 °C | 105 ░C | Dual | 2 | Non Specified - Dual Edge | Copper Alloy | Through Hole | Polyester Thermoplastic | 26 | 52 | 0.156 in | 3.96 mm |
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Female | Press-Fit Wire Wrap | Cantilever | 2 | Gold | -40 °C | 105 ░C | Dual | 2 | Non Specified - Dual Edge | Copper Alloy | Through Hole | Polyester Thermoplastic | 26 | 52 | 0.156 in | 3.96 mm |
EDAC Inc. | 0.76 Ám | 30 Áin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Female | Press-Fit | Cantilever | 2 | Gold | -40 °C | 105 ░C | Dual | 2 | Non Specified - Dual Edge | Copper Alloy | Through Hole | Polyester Thermoplastic | 26 | 52 | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 8.11 | |
Description
General part information
717-052 Series
52 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
