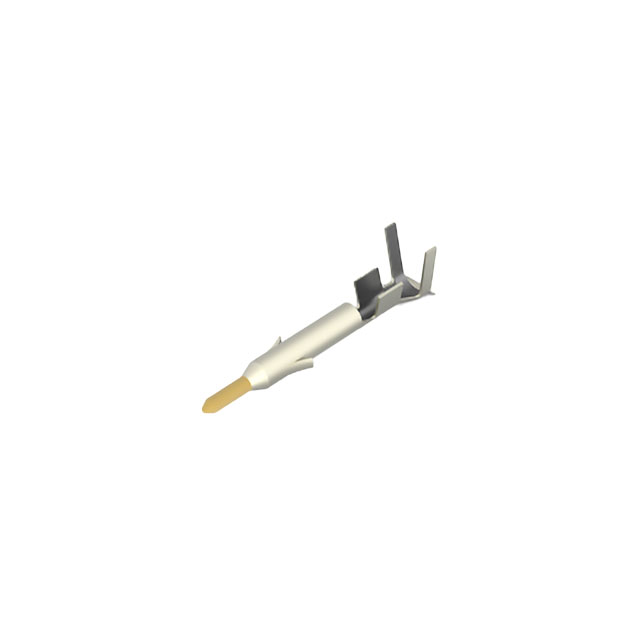

770903-6
ActiveTE Connectivity AMP Connectors
CONN PIN 18-22AWG GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
770903-6
ActiveTE Connectivity AMP Connectors
CONN PIN 18-22AWG GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 770903-6 | 770903 Series |
|---|---|---|
| Contact Finish | Gold | Gold, Tin |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Material | Phosphor Bronze | Phosphor Bronze, Brass |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Type | Power, Stamped | Power, Stamped, Stamped |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
770903 Series
CONN PIN 18-22AWG GOLD CRIMP
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Pin or Socket | Contact Finish | Contact Termination | Type |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 770903-6 | 22 AWG | 17.5 AWG | 0.76 Ám | 30 Áin | Phosphor Bronze | Pin | Gold | Crimp | Power, Stamped |
TE Connectivity AMP Connectors 770903-1 | 22 AWG | 17.5 AWG | Brass | Pin | Tin | Crimp | Stamped | ||
TE Connectivity AMP Connectors 770903-3 | 22 AWG | 17.5 AWG | 0.76 Ám | 30 Áin | Brass | Pin | Gold | Crimp | Stamped |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.55 | |
| 10 | $ 0.52 | |||
| 25 | $ 0.52 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.32 | |||
| Tape & Reel (TR) | 4500 | $ 0.26 | ||
Description
General part information
770903 Series
Pin Contact Gold Crimp 18-22 AWG Power, Stamped
