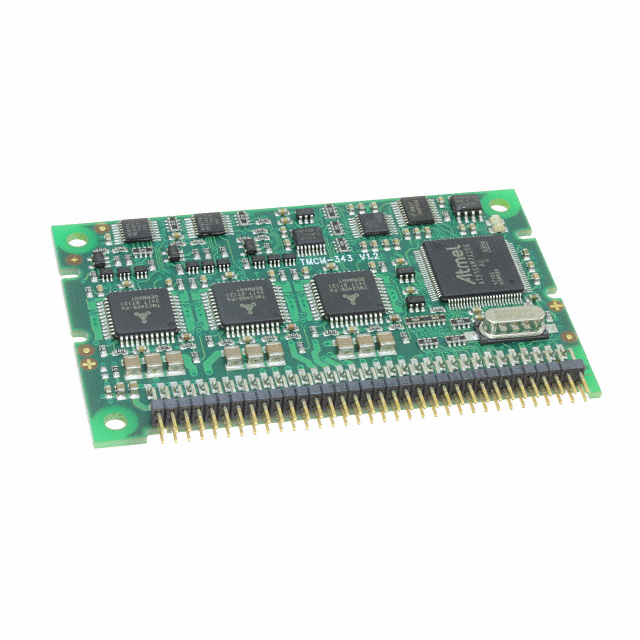

TMCM-343-H-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 1.1A
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-343-H-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 1.1A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-343-H-TMCL | TMCM-343 Series |
|---|---|---|
| Control / Drive Type | Bipolar, Stepper | Bipolar, Stepper |
| Current - Output | 1.1 A | 1.1 A |
| Interface | UART, RS-485 | UART, RS-485, RS-232, USB, SPI, CAN |
| Motor Type | Stepper | Stepper |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Motors | 3 | 3 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Type | Board | Board |
| Voltage - Load | - | 34 V |
| Voltage - Load | - | 7 V |
| Voltage - Supply [Max] | 28 V | 28 - 34 V |
| Voltage - Supply [Min] | 12 V | 8 - 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 232.27 | |
TMCM-343 Series
STEPPER DRIVER 1.1A
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Type | Control / Drive Type | Mounting Type | Motor Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Interface | Number of Motors | Current - Output | Voltage - Load [Max] | Voltage - Load [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-343-H-TMCL | -40 °C | 80 C | Board | Bipolar, Stepper | Chassis Mount | Stepper | 28 V | 12 V | RS-485, UART | 3 | 1.1 A | ||
Analog Devices Inc./Maxim Integrated TMCM-343-V-CANOPEN | -40 °C | 80 C | Board | Bipolar, Stepper | Chassis Mount | Stepper | 34 VDC | 8 V | CAN, RS-232, RS-485, SPI, USB | 3 | 1.1 A | 34 V | 7 V |
Description
General part information
TMCM-343 Series
Stepper, Bipolar 12 ~ 28VDC Supply 1.1A Load
Documents
Technical documentation and resources
No documents available
