CTCDEP147LF-100M
ActiveCentral Technologies

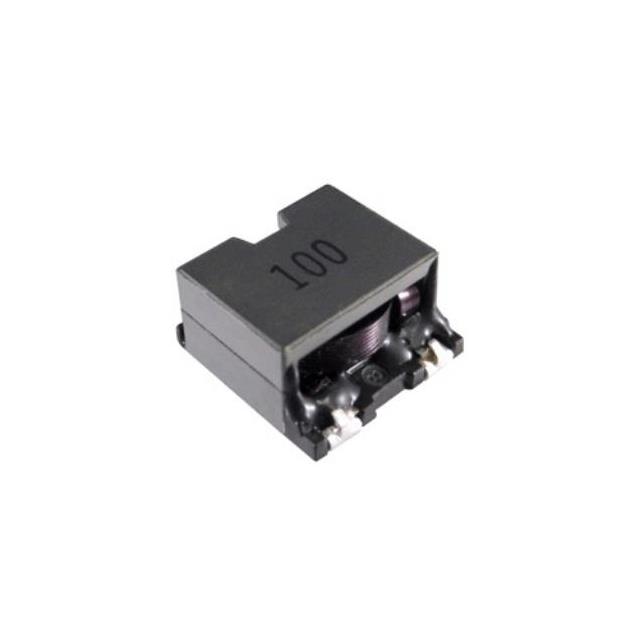

SMD SHIELDED POWER INDUCTOR
CTCDEP147LF-100M
ActiveCentral Technologies
SMD SHIELDED POWER INDUCTOR
Description
General part information
CTCDEP147LF-100M
10 µH Shielded Wirewound Inductor 10.2 A 9.85mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CTCDEP147LF-100M |
|---|---|
| Current - Saturation (Isat) | 9.2 A |
| Current Rating | 10.2 A |
| DC Resistance (DCR) (Max) | 9.85 mOhm |
| Height - Seated (Max) | 0.319 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.591 in |
| Size / Dimension Width | 0.587 in |
| Tolerance | 20 % |
| Type | Wirewound |
