IGT202
Activeifm efector, inc.
SENSOR PROX INDUCTIVE 12MM CYL
IGT202
Activeifm efector, inc.
SENSOR PROX INDUCTIVE 12MM CYL
Description
General part information

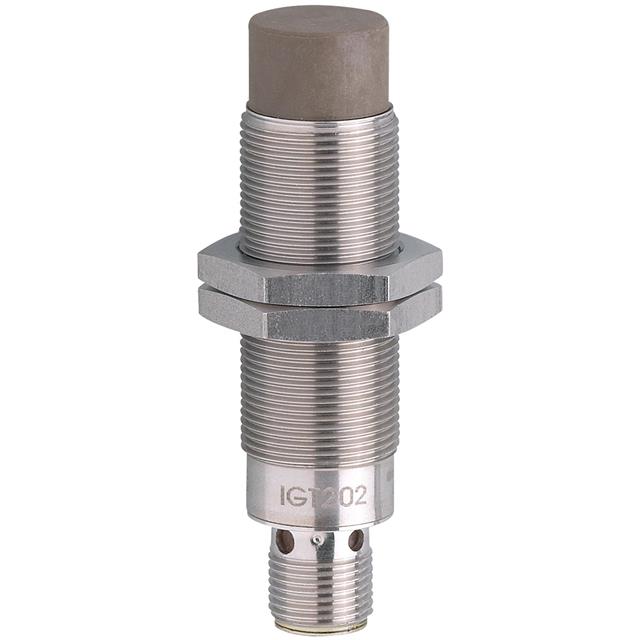

IGT202
SENSOR PROX INDUCTIVE 12MM CYL
Technical Specifications
Parameters and characteristics for this part
| Specification | IGT202 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68, IP69K |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | 0 °C |
| Output Type | PNP-NO, NPN |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance | 0.472 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
