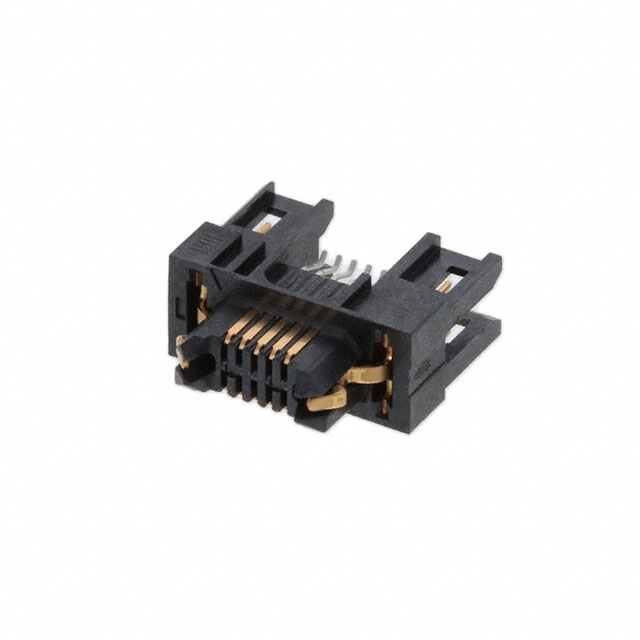

ERM8-005-01-S-D-EM2-L-TR

Active

Samtec Inc.

CONN HDR 10POS EDGE MNT GOLD

Deep-Dive with AI

Search across all available documentation for this part.

Documents0.80 mm Edge Rate® Rugged High Speed Terminal, Edge Mount Datasheet +2

ERM8-005-01-S-D-EM2-L-TR

Active

Samtec Inc.

CONN HDR 10POS EDGE MNT GOLD

Deep-Dive with AI

Documents0.80 mm Edge Rate® Rugged High Speed Terminal, Edge Mount Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-005-01-S-D-EM2-L-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Latches
Mounting Type	Board Edge, Straddle Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-005 Series

Part	Contact Finish	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Mated Stacking Heights	Height Above Board	Height Above Board
Samtec Inc. ERM8-005-01-L-D-EM2-SL-TR	Gold	Board Edge Straddle Mount	0.8 mm	0.031 in	10	Latches	10 Áin	0.25 Ám	2	Header Center Strip Contacts
Samtec Inc. ERM8-005-02.0-S-DV-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide	30 Áin	0.76 Ám	2	Header Center Strip Contacts	7 mm 9 mm 12 mm	5.97 mm	0.235 in
Samtec Inc. ERM8-005-08.0-L-DV-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide	10 Áin	0.25 Ám	2	Header Center Strip Contacts	10 mm 12 mm 15 mm	8.91 mm	0.351 in
Samtec Inc. ERM8-005-05.0-L-DV-K-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide Pick and Place	10 Áin	0.25 Ám	2	Header Center Strip Contacts	10 mm 12 mm 15 mm	8.91 mm	0.351 in
Samtec Inc. ERM8-005-01-S-D-EM2-L-TR	Gold	Board Edge Straddle Mount	0.8 mm	0.031 in	10	Latches	30 Áin	0.76 Ám	2	Header Center Strip Contacts
Samtec Inc. ERM8-005-09.0-L-DV-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide	10 Áin	0.25 Ám	2	Header Center Strip Contacts	14 mm 16 mm 19 mm	12.91 mm	0.508 in
Samtec Inc. ERM8-005-05.0-S-DV-L-K-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide Latches Pick and Place	30 Áin	0.76 Ám	2	Header Center Strip Contacts	10 mm 12 mm 15 mm	8.91 mm	0.351 in
Samtec Inc. ERM8-005-05.0-S-DV-L-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide Latches	30 Áin	0.76 Ám	2	Header Center Strip Contacts	10 mm 12 mm 15 mm	8.91 mm	0.351 in
Samtec Inc. ERM8-005-02.0-L-DV-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide	10 Áin	0.25 Ám	2	Header Center Strip Contacts	7 mm 9 mm 12 mm	5.97 mm	0.235 in
Samtec Inc. ERM8-005-05.0-L-DV-EGP-K-TR	Gold	Surface Mount	0.8 mm	0.031 in	10	Board Guide Mating Guide Pick and Place	10 Áin	0.25 Ám	2	Header Center Strip Contacts	10 mm 12 mm 15 mm	8.91 mm	0.351 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	175	$ 2.94

Description

General part information

ERM8-005 Series

10 Position Connector Header, Center Strip Contacts Board Edge, Straddle Mount Gold

ERM8-005-01-S-D-EM2-L-TR

Deep-Dive with AI

ERM8-005-01-S-D-EM2-L-TR

Deep-Dive with AI

Technical Specifications

ERM8-005 Series

Pricing

Description

ERM8-005 Series

Documents

0.80 mm Edge Rate® Rugged High Speed Terminal, Edge Mount

Datasheet

ERF8 Series Other Related Documents 03

ERM8 Datasheet

ERM8-005 Series
