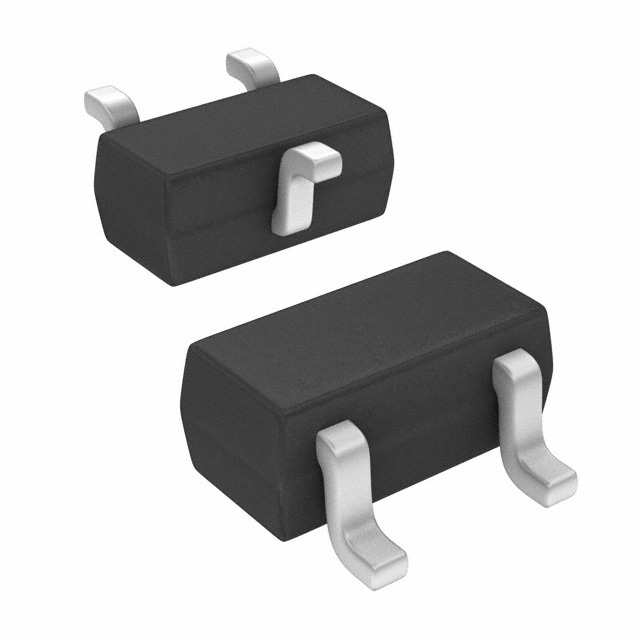

1SS385,LF(CT
ActiveToshiba Semiconductor and Storage
DIODE SCHOTTKY 10V 100MA SSM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1SS385,LF(CT
ActiveToshiba Semiconductor and Storage
DIODE SCHOTTKY 10V 100MA SSM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1SS385,LF(CT | 1SS385 Series |
|---|---|---|
| Capacitance @ Vr, F | 20 pF | 20 pF |
| Current - Average Rectified (Io) | 100 mA | 100 mA |
| Current - Reverse Leakage @ Vr | 20 µA | 20 µA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature - Junction | 125 °C | 125 °C |
| Package / Case | SC-75, SOT-416 | SC-75, SOT-416, SOT-723 |
| Speed | Any Speed | Any Speed |
| Speed | 200 mA | 200 mA |
| Supplier Device Package | SSM | SSM, VESM |
| Technology | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 10 V | 10 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV | 500 mV |
1SS385 Series
DIODE SCHOTTKY 10V 100MA SSM
| Part | Voltage - DC Reverse (Vr) (Max) [Max] | Supplier Device Package | Speed | Speed | Mounting Type | Technology | Voltage - Forward (Vf) (Max) @ If | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Current - Average Rectified (Io) | Capacitance @ Vr, F | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Toshiba Semiconductor and Storage 1SS385,LF(CT | 10 V | SSM | Any Speed | 200 mA | Surface Mount | Schottky | 500 mV | 20 µA | 125 °C | 100 mA | 20 pF | SC-75, SOT-416 |
Toshiba Semiconductor and Storage 1SS385FV,L3F | 10 V | VESM | Any Speed | 200 mA | Surface Mount | Schottky | 500 mV | 20 µA | 125 °C | 100 mA | 20 pF | SOT-723 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.31 | |
| 10 | $ 0.19 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.31 | ||
| 10 | $ 0.19 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| Tape & Reel (TR) | 3000 | $ 0.06 | ||
| 6000 | $ 0.06 | |||
| 9000 | $ 0.06 | |||
| 15000 | $ 0.05 | |||
| 21000 | $ 0.05 | |||
| 30000 | $ 0.05 | |||
| 75000 | $ 0.04 | |||
| 150000 | $ 0.04 | |||
Description
General part information
1SS385 Series
Diode 10 V 100mA Surface Mount SSM
