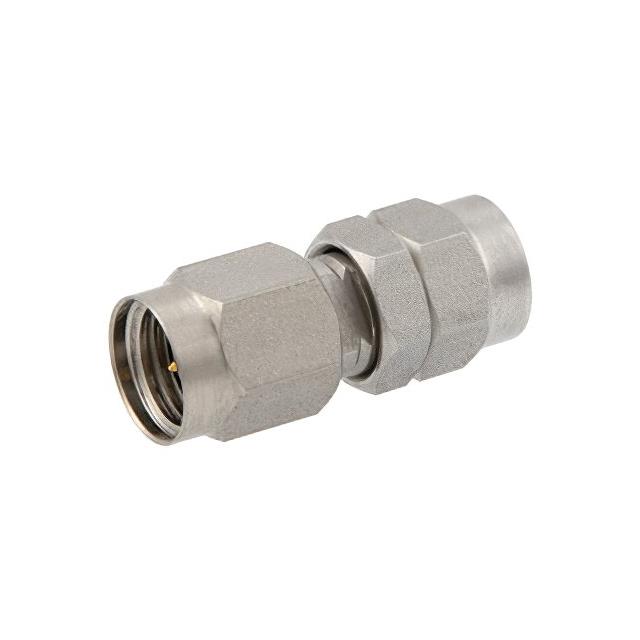

PE9672
ActivePasternack
2.4MM MALE TO 1.85MM MALE ADAPTE
PE9672
ActivePasternack
2.4MM MALE TO 1.85MM MALE ADAPTE
Description
General part information
PE9672
Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Plug, Male Pin To 1.85mm Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9672 |
|---|---|
| Adapter Series Size | 1.85 mm, 2.4 mm |
| Adapter Type | Plug to Plug |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) Plug Size | 2.4 mm |
| Convert From (Adapter End) Type | Male Pin, APC-2.4, OS-50) Plug |
| Convert To (Adapter End) | Plug, Male Pin |
| Convert To (Adapter End) Precision | 1.85 mm |
| Dielectric Material | Polyphenylene Oxide (PPO) |
| Fastening Type | Threaded |
| Frequency - Max | 50 GHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.36 dB |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
