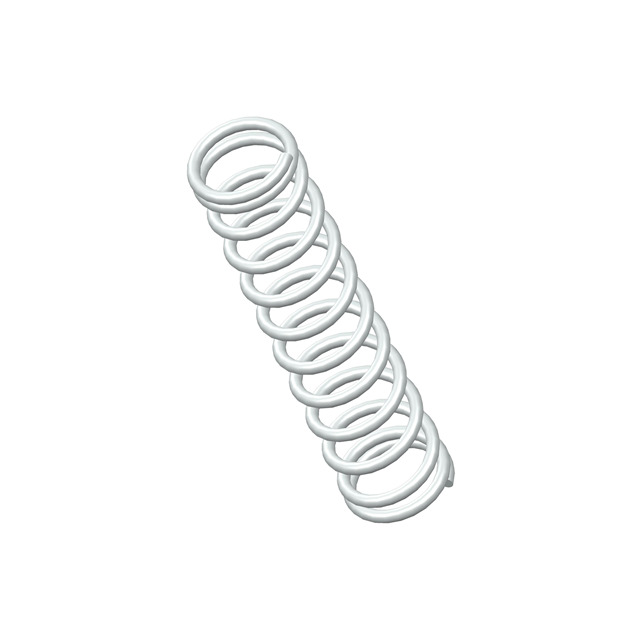

S-1161CS
ActiveCentury Spring Corp
COMP O= .188,L= .88,W= .022
S-1161CS
ActiveCentury Spring Corp
COMP O= .188,L= .88,W= .022
Description
General part information
S-1161CS
COMP O= .188,L= .88,W= .022
Technical Specifications
Parameters and characteristics for this part
| Specification | S-1161CS |
|---|---|
| Diameter - Inside | 0.144 in |
| Diameter - Outside | 0.188 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.88 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 6.5 lbs/in |
| Type | Compression |
| Wire Diameter | 0.022 in |
