Specification	3-1415356-1

Approval Agency	VDE, cURus
Coil Current	40 mA
Coil Insulation	Class F
Coil Type	Non Latching
Coil Voltage	9 VDC
Contact Form	SPST-NO
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Form A Count	1
Load - Max Switching (Apparent Power)	2400 VA
Mounting Type	Through Hole
Must Operate Voltage	6.75 VDC
Must Release Voltage	0.9 VDC
Operate Time	10 ms
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Relay Type	General Purpose
Release Time	20 ms
Seal Rating	Flux Protection, Sealed
Switching Voltage AC (Max)	400 VAC
Termination Style	PC Pin

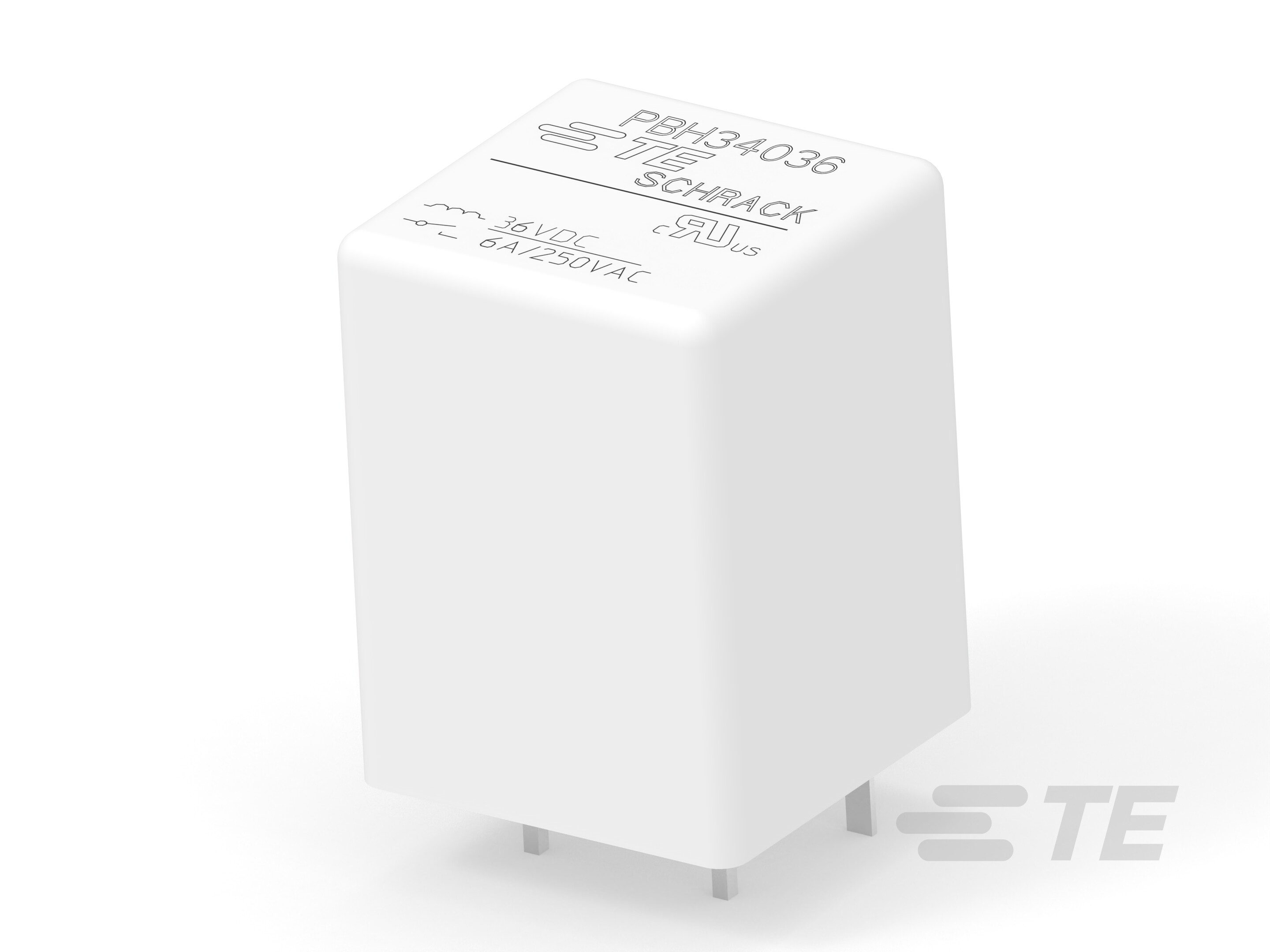

SCHRACK Miniature Power PCB Relay PB Series

Part	Coil Type	Switching Voltage AC (Max)	Mounting Type	Coil Voltage	Contact Material	Relay Type	Coil Current	Must Operate Voltage	Must Release Voltage	Load - Max Switching (Apparent Power)	Termination Style	Contact Rating (Current)	Operating Temperature (Min)	Operating Temperature (Max)	Operate Time	Form A Count	Contact Form	Coil Insulation	Approval Agency	Release Time	Coil Resistance	Seal Rating
TE Connectivity AMP Connectors 6-1415535-0	Non Latching	400 VAC	Through Hole	24 VDC	Silver Tin Oxide (AgSnO)	General Purpose	0.015 A	18 VDC	2.4 V	4000 VA	PC Pin	10 A	-40 °C	85 °C	10 ms	1	SPST-NO	Class F	cURus VDE	20 ms	1.6 kOhms
TE Connectivity AMP Connectors PB114012	Non Latching	400 VAC	Through Hole	12 VAC	Silver Nickel (AgNi)	General Purpose	30 mA	9 VDC	1.2 V	4000 VA	PC Pin	10 A	-40 °C	85 °C	10 ms		1 C Form SPDT	Class F	cURus VDE	20 ms
TE Connectivity AMP Connectors 8-1415077-1	Non Latching	400 VAC	Socketable	9 VDC	Silver Nickel (AgNi)	General Purpose	40 mA	6.75 VDC	0.9 VDC	4000 VA	PC Pin	10 A	-40 °C	85 °C	10 ms		1 C Form SPDT	Class F	cURus VDE	20 ms	225 Ohms
TE Connectivity AMP Connectors PB134012	Non Latching	400 VAC	Through Hole	12 VAC	Silver Nickel (AgNi)	General Purpose	30 mA	9 VDC	1.2 V	4000 VA	PC Pin	10 A	-40 °C	85 °C	10 ms	1	SPST-NO	Class F	cURus VDE	20 ms
TE Connectivity AMP Connectors 7-1415356-1	Non Latching	400 VAC	Through Hole	9 VDC	Silver Nickel (AgNi)	General Purpose	40 mA	6.75 VDC	0.9 VDC	2400 VA	PC Pin	6 A	-20 °C	105 °C	10 ms		1 C Form SPDT	Class F	cURus VDE	20 ms		Flux Protection Sealed
TE Connectivity AMP Connectors PB134024	Non Latching	400 VAC	Through Hole	24 VDC	Silver Nickel (AgNi)	General Purpose	0.015 A	18 VDC	2.4 V	4000 VA	PC Pin	10 A	-40 °C	85 °C	10 ms	1	SPST-NO	Class F	cURus VDE	20 ms
TE Connectivity AMP Connectors PB114024	Non Latching	400 VAC	Through Hole	24 VDC	Silver Nickel (AgNi)	General Purpose	0.015 A	18 VDC	2.4 V	4000 VA	PC Pin	10 A	-40 °C	85 °C	10 ms		1 C Form SPDT	Class F	cURus VDE	20 ms
TE Connectivity AMP Connectors PB114006	Non Latching	400 VAC	Through Hole	6 VAC	Silver Nickel (AgNi)	General Purpose	0.06 A	4.5 VDC	0.6 VAC	4000 VA	PC Pin	10 A	-40 °C	85 °C	10 ms		1 C Form SPDT	Class F	cURus VDE	20 ms
TE Connectivity AMP Connectors PB114006	Non Latching	400 VAC	Through Hole	6 VAC	Silver Nickel (AgNi)	General Purpose	0.06 A	4.5 VDC	0.6 VAC	4000 VA	PC Pin	10 A	-40 °C	85 °C	10 ms		1 C Form SPDT	Class F	cURus VDE	20 ms
TE Connectivity AMP Connectors 1415356-1	Non Latching	400 VAC	Through Hole	36 VAC	Silver Nickel (AgNi)	General Purpose	10 mA			2400 VA	PC Pin	6 A	-20 °C	105 °C	10 ms	1	SPST-NO		cURus VDE	20 ms	3.6 kOhms
