1619890
ActivePhoenix Contact

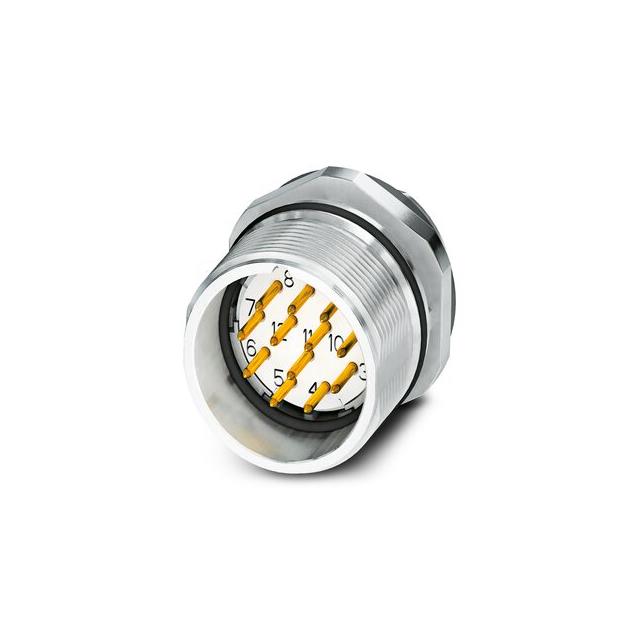

CONN RCPT MALE 12POS SOLDER CUP
1619890
ActivePhoenix Contact
CONN RCPT MALE 12POS SOLDER CUP
Description
General part information
1619890
12 (Power) Position Circular Connector Receptacle, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 1619890 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Fastening Type | Push-Twist |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | PBT, Polybutylene Terephthalate |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Positions | 12 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Position Types | Power |
| Primary Material | Metal |
| Shell Material | Gadolinium-Zinc |
| Shell Size - Insert | M23-12 |
| Shielding | Shielded |
| Termination | Solder Cup |
