FF10M70000S0A5
ActiveNextGen Components
FILTER 10.7MHZ FM, A5
FF10M70000S0A5
ActiveNextGen Components
FILTER 10.7MHZ FM, A5
Description
General part information
FF10M70000S0A5

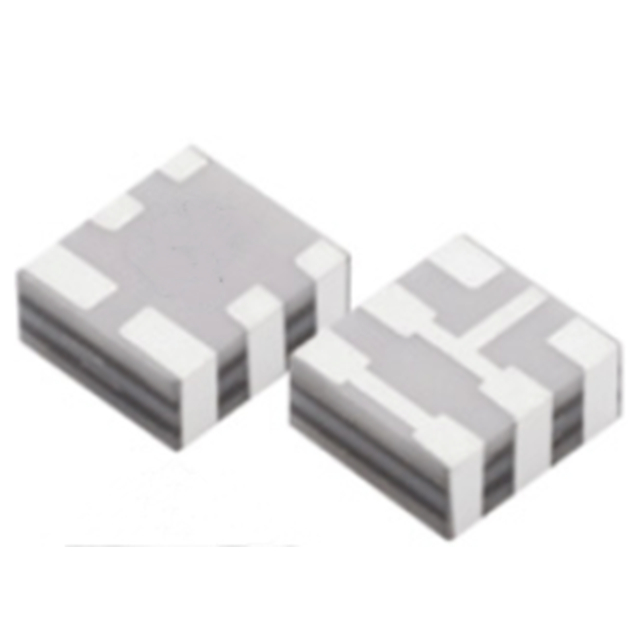

10.7MHz Center FM Ceramic Filter 280 kHz 330Ohm 1412 (3531 Metric), 4 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | FF10M70000S0A5 |
|---|---|
| Bandwidth | 280 kHz |
| Filter Type | FM |
| Frequency (Center) | 10.7 MHz |
| Height (Max) | 0.059 in |
| Impedance | 330 Ohm |
| Insertion Loss | 3 dB |
| Mounting Type | Surface Mount |
| Package Name | 1412 |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.136 in |
| Size / Dimension Width | 0.122 in |
