PTQ-11058-C
ActiveBUD INDUSTRIES
PLASTIC ENCLOSURE, MULTIPURPOSE, POLYCARBONATE, GLASS FIBRE REINFORCED, 130.05 MM, 199.9 MM
PTQ-11058-C
ActiveBUD INDUSTRIES
PLASTIC ENCLOSURE, MULTIPURPOSE, POLYCARBONATE, GLASS FIBRE REINFORCED, 130.05 MM, 199.9 MM
Description
General part information
PTQ-11058-C

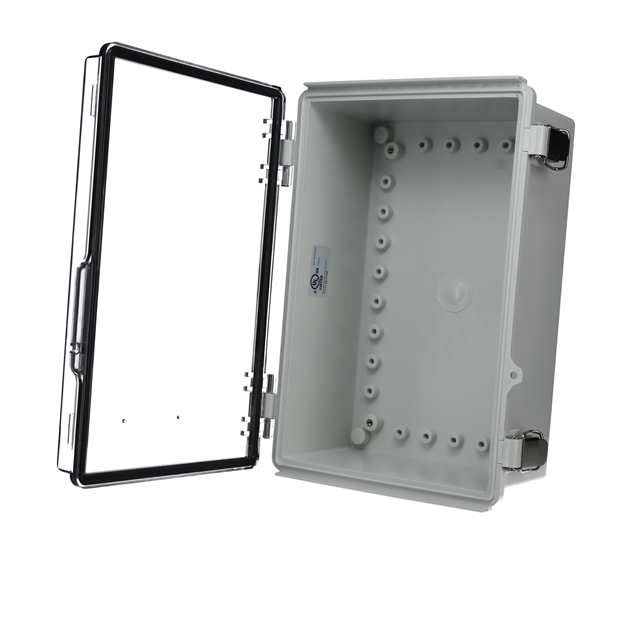

Box Plastic, Fiberglass/Polyester, Polycarbonate Gray, Clear Cover/Door Hinged Door, Lid 11.810" L x 7.870" W (299.97mm x 199.90mm) X 5.120" (130.05mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PTQ-11058-C |
|---|---|
| Area (L x W) | 92.9 in² |
| Color | Clear Cover/Door, Gray |
| Container Type | Box |
| Design | Lid, Hinged Door |
| Height | 5.12 in |
| Material | Polycarbonate, Polyester, Fiberglass, Plastic |
| Material Flammability Rating | UL94 V-0 |
| Ratings | IP67, UL-508, 2, 4, 6, NEMA 1, 4X |
| Size / Dimension Length | 11.81 in |
| Size / Dimension Width | 7.87 in |
| Thickness | 0.13 in |
