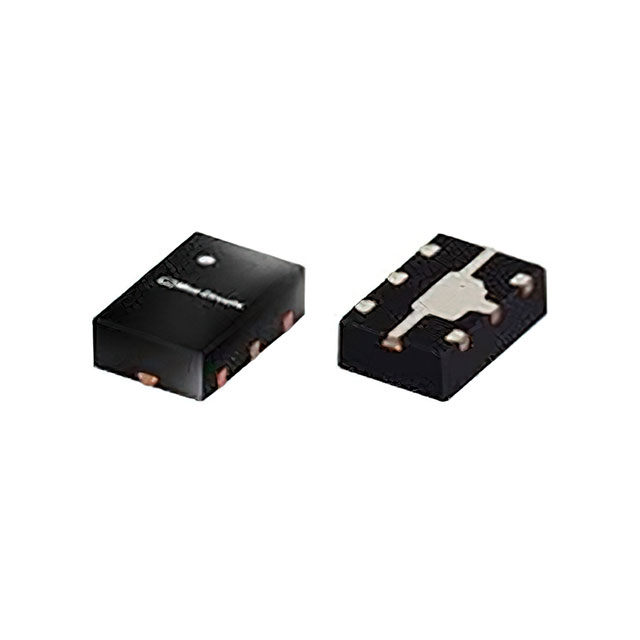

VSW2-33-10W+
ActiveMini-Circuits
IC RF SWITCH SPDT 3GHZ
VSW2-33-10W+
ActiveMini-Circuits
IC RF SWITCH SPDT 3GHZ
Description
General part information
VSW2-33-10W+
RF Switch IC Cellular, ISM, PCS, LTE, TDS-CDMA, W-CDMA, WiMAX SPDT 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | VSW2-33-10W+ |
|---|---|
| Circuit | SPDT |
| Frequency Range (Max) | 3 GHz |
| Frequency Range (Min) | 50 MHz |
| IIP3 | 56 dBm |
| Impedance | 50 Ohm |
| Insertion Loss | 0.6 dB |
| Isolation | 18 dB |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | No Lead, 6-SMD |
| RF Type | W-CDMA, LTE, TDS-CDMA, WiMAX, Cellular, PCS, ISM |
| Test Frequency | 3 GHz |
| Topology | Reflective |
| Voltage - Supply (Maximum) | 5 V |
| Voltage - Supply (Minimum) | 3 V |
